MAIN SILENCER [SKYACTIV-D 2.2]

id0115z7101000

Purpose, Function

• Reduces the exhaust noise.

Construction

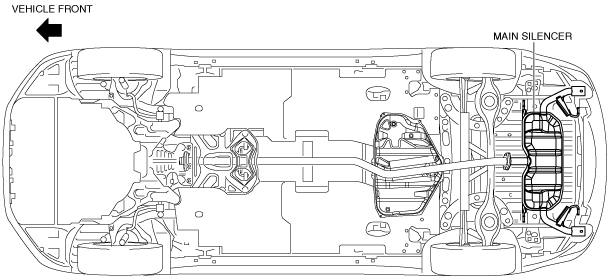

• The main silencer is installed to the vehicle rear, under the trunk compartment.

am6zzn00002746

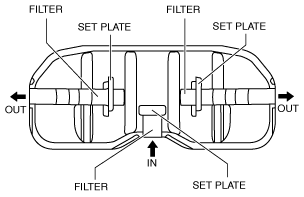

• The main silencer consists of the filters and set plates.

am6zzn00004119
