CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116zb189700

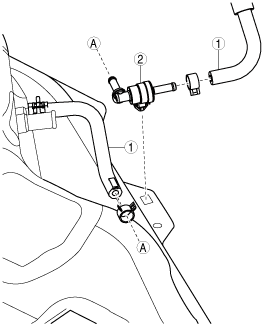

1.  Remove in the order indicated in the table.

am6zzw00010415

1	Evaporative hose
2	Check valve

2.  Install in the reverse order of removal.
