MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR [SKYACTIV-D 2.2]

id0140z7006800

MAP Sensor No.1

Purpose/Function

•  Detects the intake air pressure between large-type turbocharger and small-type turbocharger as basic information for mainly controlling the air charging pressure.

•  Detects the intake air pressure between large-type turbocharger and small-type turbocharger and inputs to the PCM as an intake air pressure signal.

Construction

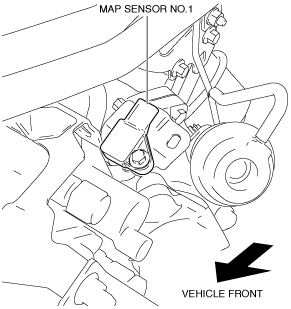

•  Installed on the turbocharger.

am6zzn00002663

•  A semiconductor strain gauge has been adopted as the detecting element for detecting the intake air pressure.

Operation

•  Inputs the signal, which fluctuates according to the intake air pressure, to the PCM.

ac5wzn00001615

MAP sensor No.1 characteristic

ac5wzn00001616

Fail-safe

DTC No.	Fail-safe function
P0236:00	•  PCM restricts engine-transaxle integration control.
P0237:00 P0238:00	•  Stops compressor bypass solenoid valve •  Stops regulating solenoid valve •  Stops wastegate solenoid valve

MAP Sensor No.2

Purpose/Function

•  Detects the intake air pressure introduced into the cylinder as basic information for mainly determining the fuel injection amount.

•  Detects the intake air pressure introduced into the cylinder and inputs it to the PCM as an intake air pressure signal.

Construction

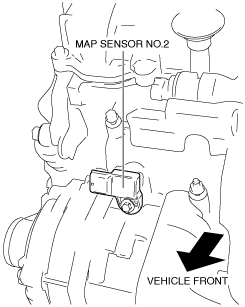

•  Installed on the intake manifold.

am6zzn00002922

•  A semiconductor strain gauge has been adopted as the detecting element for detecting the intake air pressure.

Operation

•  Inputs the signal, which fluctuates according to the intake air pressure, to the PCM.

ac5wzn00001618

MAP sensor No.2 characteristic

ac5jjn00001468

Fail-safe

DTC No.	Fail-safe function
P0106:00 P0107:00 P0108:00	•  PCM restricts engine torque. •  Inhibits the auto DPF regeneration control. •  Inhibits the compulsory DPF regeneration control. •  Inhibits the boost control. •  Inhibits the EGR control. •  PCM restricts engine-transaxle integration control. (ATX) •  Inhibits engine-stop by operating the i-stop function.
