DRIVELINE/AXLE

id030000100400

Features

• Unit-design, double angular ball bearings with low rotational resistance have been adopted for the front and rear axles.

• Unit bearings that require no preload adjustment have been adopted for the front and rear wheels.

• The following parts have been adopted to reduce vibration and noise:

― Bell-shaped constant velocity joint has been adopted for the wheel-side joint of the front drive shaft.

― For ATX vehicles, to absorb idling vibration occurring while the vehicle is stopped in the D position, a tripod-shaped joint has been adopted for the differential-side constant velocity joint, reducing vibration and noise.

― For MTX vehicles, a double offset-type constant velocity joint has been adopted for the differential-side joint of the front drive shaft.

― For 4WD vehicles, bell-shaped constant velocity joint has been adopted for the wheel-side joint of the rear drive shaft.

― For 4WD vehicles, a tripod-shaped joint has been adopted for the differential-side constant velocity joint.

― For 4WD vehicles, 2-part, 1-joint type propeller shaft with middle shaft bearing has been adopted.

• For 4WD vehicles, the following parts have been adopted to improve off-road mobility and handling stability:

― Electronic 4WD control system which automatically and optimally controls drive torque distribution for the front and rear wheels.

― Rear differential which integrates the coupling component to reduce size and weight.

Specifications

2WD

ATX

Item		Specification
Item		SKYACTIV-G 2.0	SKYACTIV-G 2.5	SKYACTIV-D 2.2
Front axle
Bearing type		Angular ball bearing
Rear axle
Bearing type		Angular ball bearing
Front drive shaft
Front drive shaft joint type	Wheel side	Ball joint
Front drive shaft joint type	Differential side	Tripod joint
Front drive shaft diameter	(mm {in})	LH: 26.0 {1.024} RH: 27.5 {1.083}	LH: 24.5 {0.965} RH: 27.5 {1.083}	LH: 27.0 {1.063} RH: 29.0 {1.142}

MTX

Item		Specification
Item		SKYACTIV-G 2.0	SKYACTIV-D 2.2
Front axle
Bearing type		Angular ball bearing
Rear axle
Bearing type		Angular ball bearing
Front drive shaft
Front drive shaft joint type	Wheel side	Ball joint
Front drive shaft joint type	Differential side	Double offset joint
Front drive shaft diameter	(mm {in})	LH: 27.0 {1.063} RH: 29.0 {1.142}

4WD

Item

Specification

SKYACTIV-D 2.2

Front axle

Bearing type

Angular ball bearing

Rear axle

Bearing type

Angular ball bearing

Front drive shaft

Front drive shaft joint type

Wheel side

Ball joint

Differential side

Tripod joint [ATX]

Double offset joint [MTX]

Front drive shaft diameter

ATX

(mm {in})

LH: 27.0 {1.063}

RH: 29.0 {1.142}

MTX

(mm {in})

LH: 27.0 {1.063}

RH: 29.0 {1.142}

Rear drive shaft (4WD)

Rear drive shaft joint type

Wheel side

Ball joint

Differential side

Tripod joint

Rear drive shaft diameter

(mm {in})

22.0 {0.866}

Rear differential (4WD)

Rear and front wheel torque distribution unit

Electronic control coupling

Reduction gear

Hypoid gear

Differential gear

Straight bevel gear

Ring gear size

(mm {in})

140 {5.51}

Final gear ratio

2.928

Gears:

Number of teeth

Drive pinion

14

Ring gear

41

Differential oil

Type

Mazda Long Life Hypoid Gear Oil SG1

Oil capacity

(approx. quantity)

(L {US qt, lmp qt})

0.45 (0.48, 0.40)

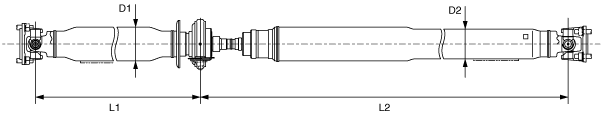

Propeller shaft (4WD)

Length

(mm {in})

L1

874.1 {34.41}

L2

1353.8 {53.299}

Outer diameter

(mm {in})

D1

63.5 {2.50}

D2

66 {2.6}

Joint type

Constant velocity joint

and cross-shaped joint

Constant velocity joint

Double offset joint

Transfer (4WD)

Transfer oil

Type

Mazda Long Life Hypoid Gear Oil SG1

Oil capacity

(approx. quantity)

(L {US qt, Imp qt})

0.45 (0.48, 0.40)
