REAR DRIVE SHAFT


id031300100700


Purpose, Function

•  Engine noise and vibration have been reduced due to adoption of a ball joint on the wheel side of the constant velocity joint.
•  A tripod joint have been adopted for the differential side constant velocity joint to reduce booming noise during high-speed driving and vibration when idling.
•  An extremely durable plastic has been adopted for the wheel side boot.

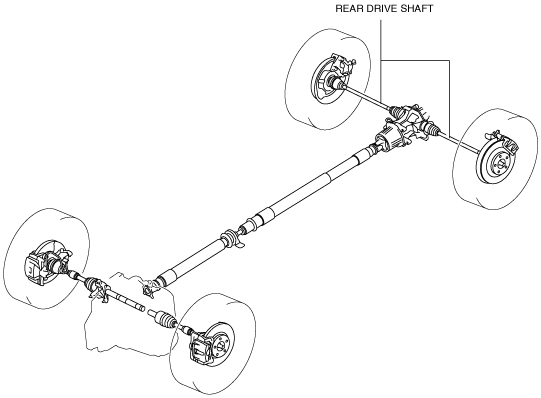

Structural View

ac5wzn00001161
