DYNAMIC STABILITY CONTROL LOCATION INDEX

id041500800500

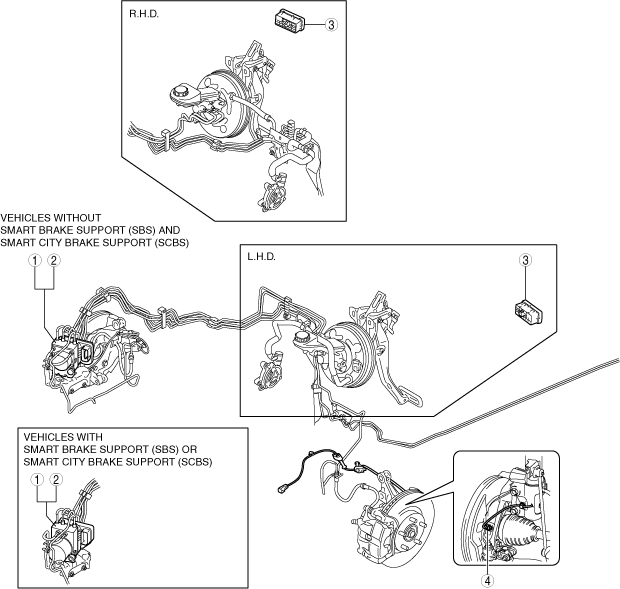

Vehicle Front Side

am6zzw00015005

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

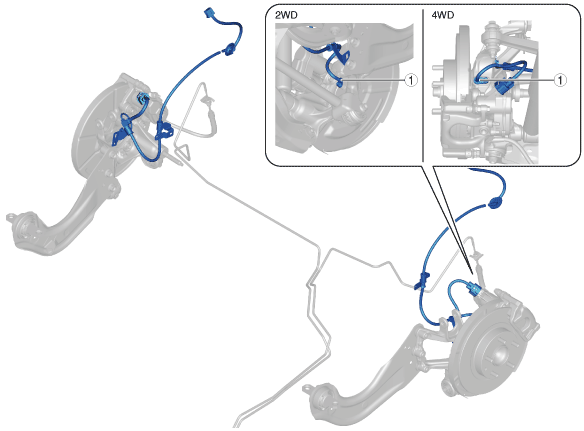

Vehicle Rear Side

am6zzw00015006

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
