SHIFT POSITION INDICATOR LIGHT [GW6A-EL, GW6AX-EL]
id0517i2361700
Purpose/Function
• The shift position indicator light indicates the selector lever position.
Construction
• The shift position indicator light is built into the instrument cluster.
Operation

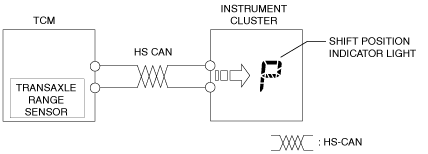

• The TCM sends a shift position indicator light illumination request signal to the instrument cluster via CAN based on the signal from the integrated transaxle range sensor signal received via CAN.
