STEERING GEAR AND LINKAGE DISASSEMBLY

id061300801800

Caution

•  To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

1.  Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION)

2.  Disassemble in the order indicated in the figure.

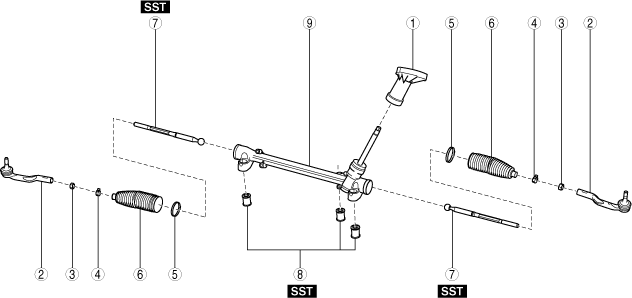

L.H.D.

am3zzw00018294

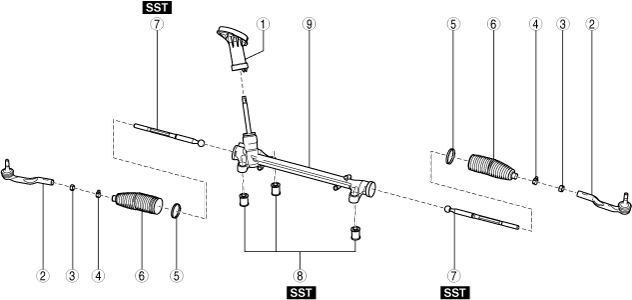

R.H.D.

am3zzw00018295

1	Dust cover
2	Tie-rod end (See Tie-rod End Disassembly Note.)
3	Locknut
4	Boot clamp
5	Boot band (See Boot Band Disassembly Note .)
6	Boot
7	Tie rod (See Tie Rod Disassembly Note.)
8	Mounting rubber (See Mounting Rubber Disassembly Note.)
9	Steering gear

Tie-rod End Disassembly Note

1.  Place alignment marks as shown in the figure for proper installation.

am6zzw00009179

2.  Remove the tie-rod end.

am6zzw00009163

Boot Band Disassembly Note

1.  Insert a flathead screwdriver into the boot band as shown in the figure, then press the caulked area outward to remove the boot band.

ac5wzw00001035

Tie Rod Disassembly Note

1.   Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.

am3zzw00018067

Mounting Rubber Disassembly Note

1.  Remove the mounting rubber from the gear housing using the SSTs and a press.

ac5wzw00001037
