AIR INTAKE ACTUATOR [FULL-AUTO AIR CONDITIONER]

id0740a1004800

Potentiometer Type

Purpose

•  The air intake actuator moves the air intake door in the blower unit to switch the air intake port.

Function

Door open/close function

•  The door open/close function opens/closes the air intake door in the FRESH or RECIRCULATE positions.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the air intake actuator motor drive.

Construction

•  A potentiometer-type air intake actuator has been adopted.

•  The air intake actuator is installed to the blower unit.

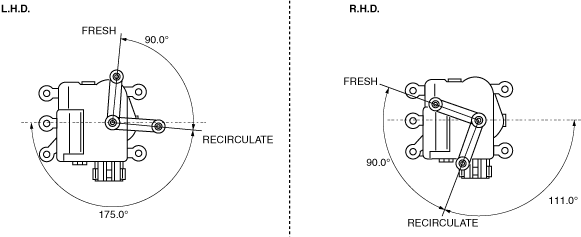

•  The operation range of the air intake actuator is as indicated in the diagram.

am6zzn00004328

Operation

•  For the air intake actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER].)

Fail-safe

•  Not applicable

Mechanical Lock Type

Purpose

•  The air intake actuator moves the air intake door in the blower unit to switch the air intake port.

Function

•  The air intake actuator drives the motor based on the signal from the climate control unit and moves the air intake door to the FRESH or REC position.

Construction

•  A mechanical lock type air intake actuator has been adopted.

•  The air intake actuator is installed to the blower unit.

•  The operation range of the air intake actuator is as indicated in the diagram.

am6zzn00004329

Operation

•  For the air intake actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER].)

Fail-safe

•  Not applicable
