FRONT BUCKLE REMOVAL/INSTALLATION

id081100800400

1.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Disconnect the front buckle connector.

am6zzw00013002

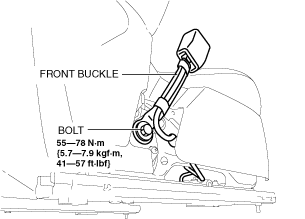

4.  Remove the bolt.

am6xuw00005800

5.  Remove the front buckle.

6.  Install in the reverse order of removal.
