FUEL-FILLER LID ADJUSTMENT

id091000800200

1. Verify that the gap and height difference between the fuel-filler lid and body.

2. Loosen the bolts and adjust the fuel-filler lid.

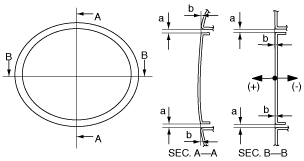

am6zzw00008799

Standard clearance

a: 1.7—3.7 mm {0.07—0.14 in}

b: -1.5—0.5 mm {-0.05—0.01 in}
