SEAL PLATE REMOVAL/INSTALLATION

id091000889000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Remove bolts.

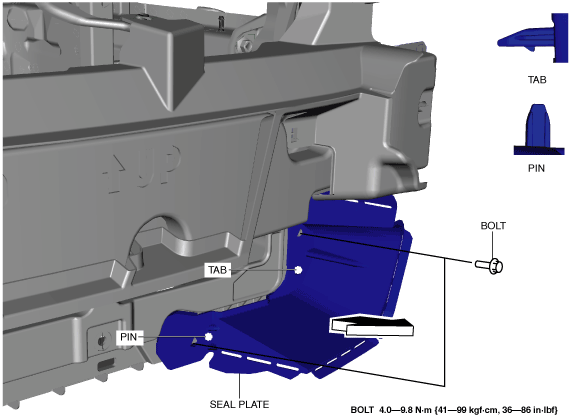

am6xuw00007779

5.  Remove the seal plate in the direction of the arrow shown in the figure while detaching tab and pin.

6.  Install in the reverse order of removal.

7.  Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING.)
