FRONT DOOR LATCH SWITCH INSPECTION
id091400511400
1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)
3. Remove the following parts:
- (1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
- (2) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
- (3) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
- (4) Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
- (5) Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
- (6) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

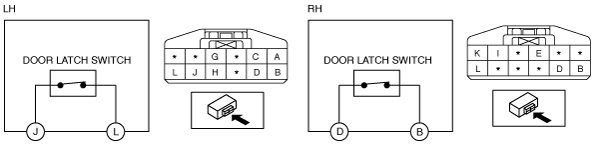

4. Verify that the continuity is as indicated in the table.
-
• If not as indicated in the table, replace the front door latch and lock actuator.
-
Note
-

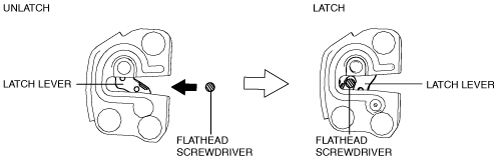

• When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
