ROOF MOLDING REMOVAL

id091600447800

4SD

1.  Insert a tape-wrapped flathead screwdriver in the position shown in the figure.

am6zzw00013360

2.  Rotate a tape-wrapped flathead screwdriver in the direction of the arrow in the order of (1), (2) shown in the figure and remove the roof molding from the front T-stud.

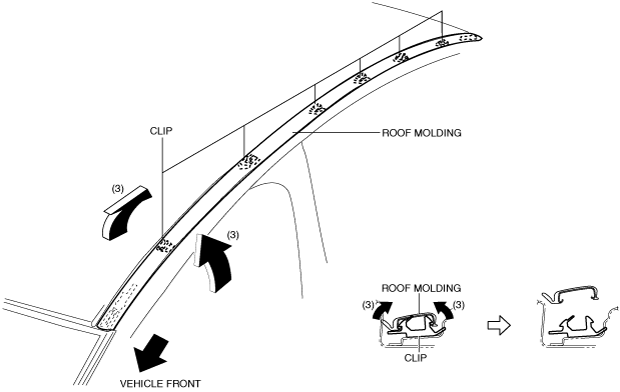

3.  Rotate the roof molding in the direction of arrows (3) shown in the figure and remove it starting from the clips at the front of the vehicle.

am6zzw00013447

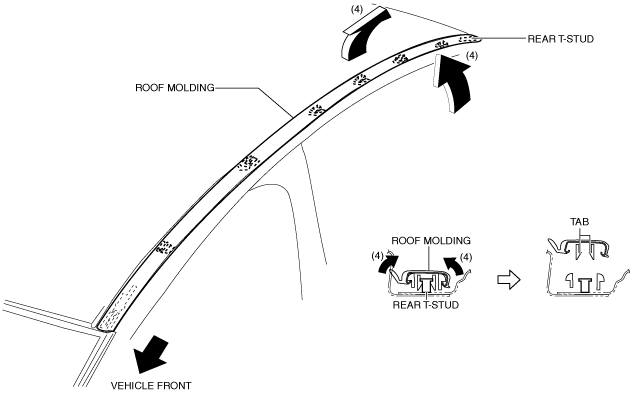

4.  Rotate the roof molding in the direction of arrows (4) shown in the figure and remove the roof molding tab from the rear T-stud.

am6zzw00013448

WGN

With Roof Rail

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(22)  Roof rail (See ROOF RAIL REMOVAL/INSTALLATION.)

3.  Insert a tape-wrapped flathead screwdriver in the position shown in the figure.

am6zzw00013360

4.  Rotate a tape-wrapped flathead screwdriver in the direction of the arrow in the order of (1), (2) shown in the figure and remove the roof molding from the front T-stud.

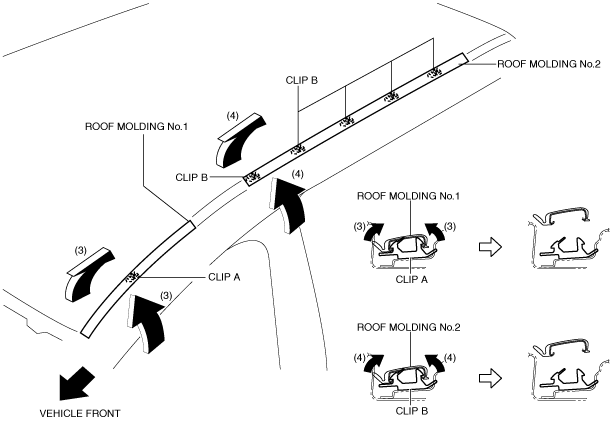

5.  Rotate the roof molding No.1 in the direction of arrows (3) shown in the figure and remove the roof molding tab from the clip A.

am6zzw00013449

6.  Rotate the roof molding No.2 in the direction of arrows (4) shown in the figure and remove the roof molding tab from the clips B.

Without Roof Rail

1.  Insert a tape-wrapped flathead screwdriver in the position shown in the figure.

am6zzw00013360

2.  Rotate a tape-wrapped flathead screwdriver in the direction of the arrow in the order of (1), (2) shown in the figure and remove the roof molding from the front T-stud.

3.  Rotate the roof molding in the direction of arrows (3) shown in the figure and remove it starting from the clips at the front of the vehicle.

am6zzw00013450

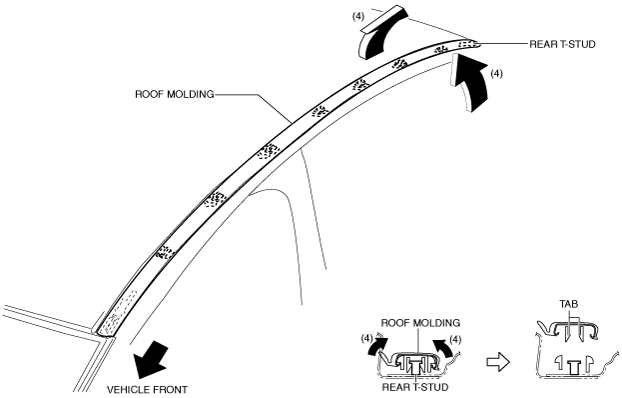

4.  Rotate the roof molding in the direction of arrows (4) shown in the figure and remove the roof molding tab from the rear T-stud.

am6zzw00013451
