ROOF CARRIER BRACKET REMOVAL/INSTALLATION
id091600801700
4SD
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (14) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
- (15) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (16) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (17) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (18) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (19) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
- (20) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (21) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
- (22) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (23) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (24) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
- (25) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
- (26) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (27) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (28) Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)
- (29) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
- (30) Curtain air bag module (with curtain air bag module) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

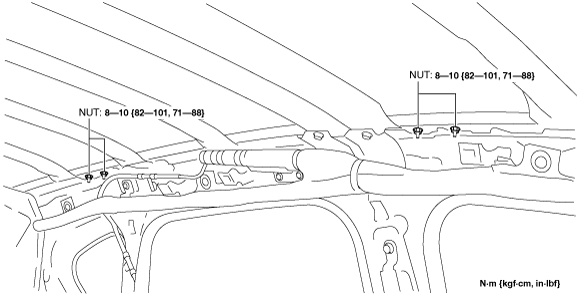

3. Remove nuts.

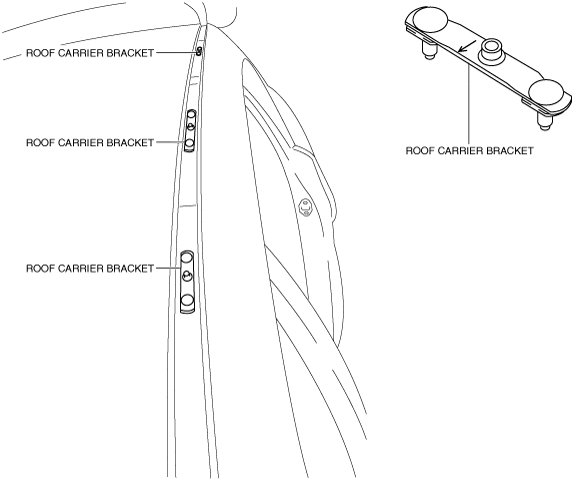

4. Remove the roof carrier brackets.
5. Install in the reverse order of removal.
-
Note
-
• Install the roof carrier bracket so that the arrow on it faces inward.
WGN
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (14) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (15) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (16) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
- (17) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (18) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (20) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (21) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
- (22) Curtain air bag module (with curtain air bag module) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

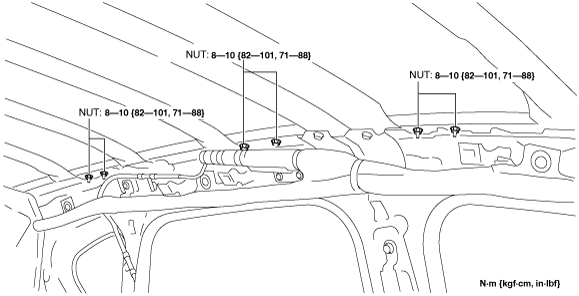

3. Remove nuts.
4. Remove the roof carrier brackets.
5. Install in the reverse order of removal.
-
Note
-
• Install the roof carrier bracket so that the arrow on it faces inward.
