DOOR SASH FILM INSTALLATION


id091600805300


Front Door Sash Film

1.  Remove any grease or dirt from the affixing surface of the front door sash film.

2.  Peel off the tape backing and attach the front door sash film to the position shown in the figure.

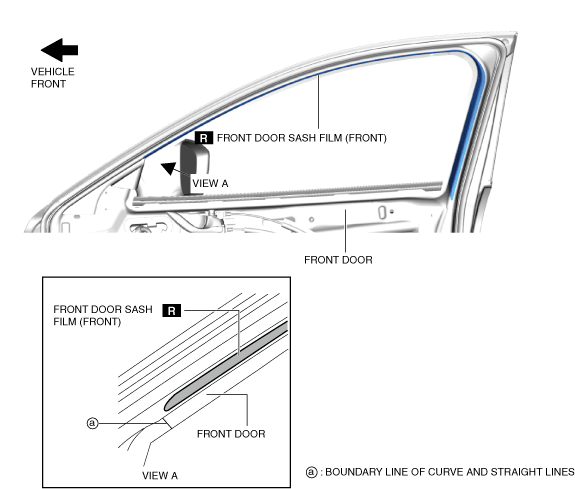

am6zzw00014930

3.  Peel off the tape backing and attach the front door sash film to the positions shown in the figure.

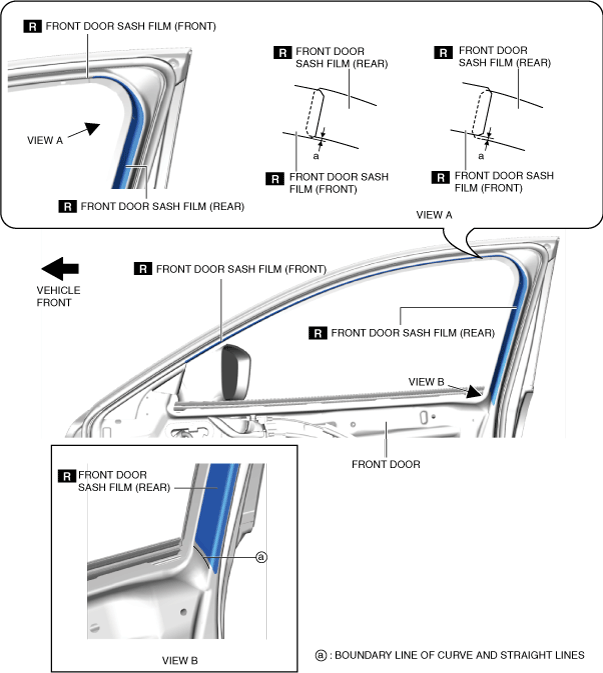

am6zzw00015180

Standard clearance
a: 1.0 mm {0.039 in} or less
b: 5.0 mm {0.20 in} or more

4.  Install the glass run channel to the front door panel by pressing the glass run channel along the entire perimeter.

5.  Install the following parts:

(1)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)


Rear Door Sash Film

1.  Remove any grease or dirt from the affixing surface of the rear door sash film.

2.  Peel off the tape backing and attach the rear door sash film to the position shown in the figure.

4SD

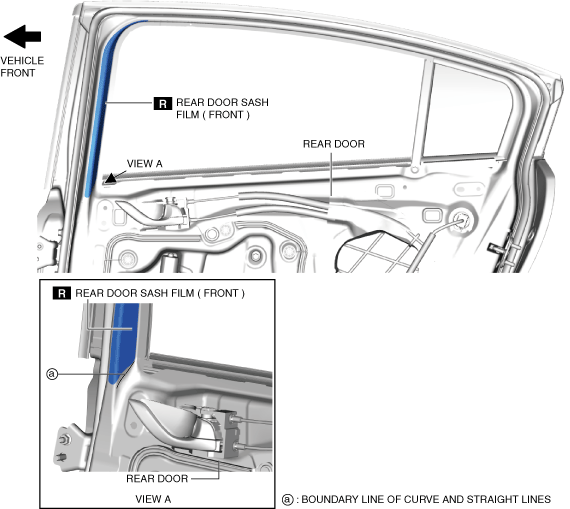

am6zzw00014932

WGN

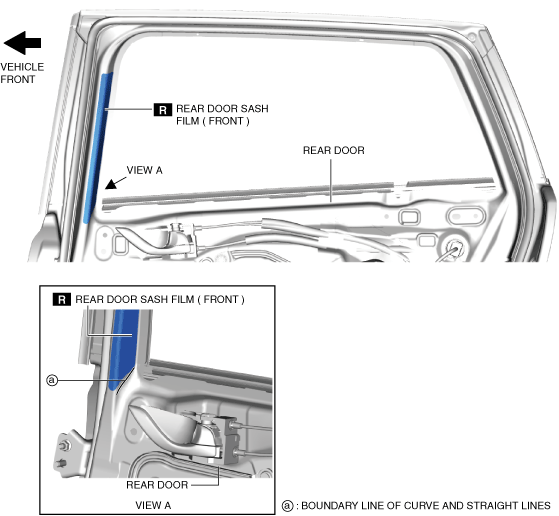

am6zzw00014936

3.  Peel off the tape backing and attach the rear door sash films to the positions shown in the figure.

4SD

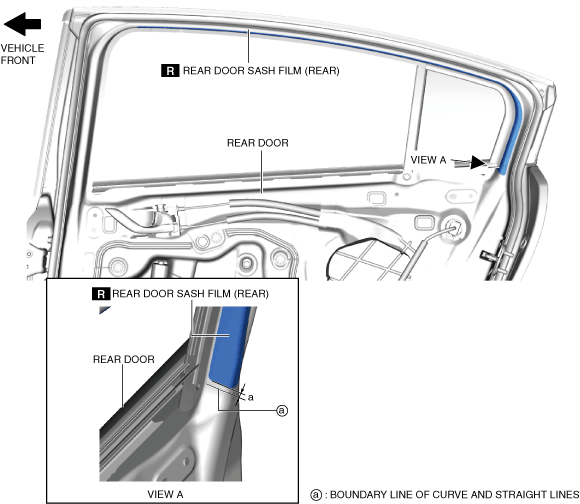

am6zzw00014934

WGN

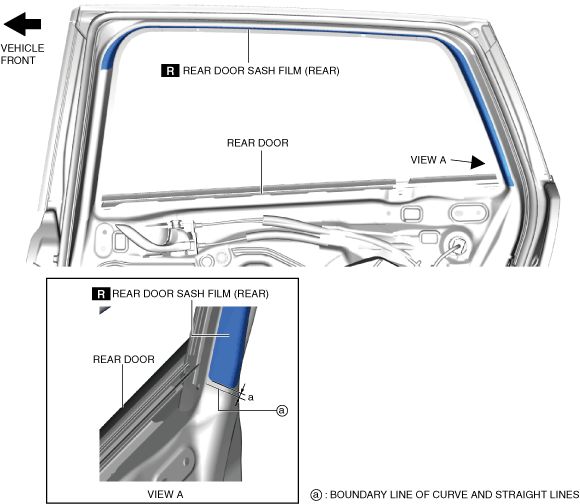

am6zzw00014937

Standard clearance
a:0.0—6.0 mm {0.00—0.23 in}

4.  Install the following parts:

(1)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(2)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)
(4)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)
