LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Auto light system (With auto light system)
―  Headlight manual leveling system (With headlight manual leveling system)
―  Headlight auto leveling system (With headlight auto leveling system)
―  Coming home light system
―  Leaving home light system
•  LEDs have been adopted for the following lights:
―  Headlight (front combination light (LED type))
―  Parking light/running light (With running light system) (front combination light (LED type))
―  Front fog light (front fog light (LED type))
―  Signature wing illumination (With signature wing illumination)
―  Side turn light
―  Brake light (rear combination light (B type))
―  Brake light/taillight
―  Taillight (rear combination light (B type))
―  Taillight (trunk lid light (4SD)/liftgate light (WGN) (LED type))
―  High-mount brake light
―  Front map light (LED type)
―  Rear map light (LED type)
―  Cargo compartment light (WGN) (LED type)
―  Down light (front map light (LED type))
•  Front fog lights have been adopted. (With front fog lights)
•  Signature wing illumination has been adopted. (With signature wing illumination)
•  Rear fog light has been adopted. (With rear fog light)
•  Emergency signal system (ESS) has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the room lights change.

Specification

Item

Spec (W) × Quantity
Exterior
Front combination light (bulb type)
Headlight LO bulb
55 × 2
Headlight HI bulb (Without running light system)
60 × 2
Headlight HI bulb (With running light system)
55 / 15 × 2
Parking light bulb
5 × 2
Front turn light bulb
21 × 2
Front combination light (LED type)
Headlight LO (LED) (Without adaptive LED headlights system)*1
18 × 2
Headlight LO (LED) (With adaptive LED headlights system)*1
27 × 2
Headlight HI (LED) (Without adaptive LED headlights system)*1
18 × 2
Headlight HI (LED) (With adaptive LED headlights system)*1
38 × 2
Parking light/Running light (With running light system) (LED)*1
2.4 × 2
Front turn light bulb
21 × 2
Front fog light bulb (With front fog light)
55 × 2
Front fog light (LED) (With front fog light)*1
8.4 × 2
Signature wing illumination (LED) (With signature wing illumination)*1
1.5 × 2
Side turn light (LED)*1
0.6× 2
Rear combination light (A type)
Rear turn light bulb
21 × 2
Brake light/Taillight (LED)*1
2.7 / 0.2 × 2
Rear combination light (B type)
Rear turn light bulb
21 × 2
Brake light/Taillight (LED)*1
3.9 / 2.4 × 2
Trunk lid light (4SD)/Liftgate light (WGN) (bulb type)
Back-up light bulb (Without rear fog light)
21 × 2
Back-up light bulb (With rear fog light)
21 × 1
Rear fog light bulb (With rear fog light)
21 × 1
Taillight bulb
5 × 2
Trunk lid light (4SD)/Liftgate light (WGN) (LED type)
Back-up light bulb (Without rear fog light)
21 × 2
Back-up light bulb (With rear fog light)
21 × 1
Rear fog light bulb (With rear fog light)
21 × 1
Taillight (LED)*1
0.6 × 2
High-mount brake light (LED) (Rear window glass: Clear glass)
1.8 × 1
High-mount brake light (LED) (Rear window glass: Dark tinted glass)
2.4 × 1
License plate light bulb
5 × 2
Interior
Courtesy light bulb
5 × 2
Front map light bulb
8 × 2
Front map light (LED)*1
1 × 2
Rear map light bulb
8 × 2
Rear map light (LED)*1
1 × 2
Down light (LED)*1
0.132 × 1
Trunk compartment light bulb (4SD)
3 × 1
Cargo compartment light bulb (WGN)
8 × 1
Cargo compartment light (LED) (WGN)*1
1 × 1
Glove compartment light bulb
1.7 × 1
Vanity mirror illumination bulb (With vanity mirror illumination)
2 × 2

*1  :The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.

Structural View

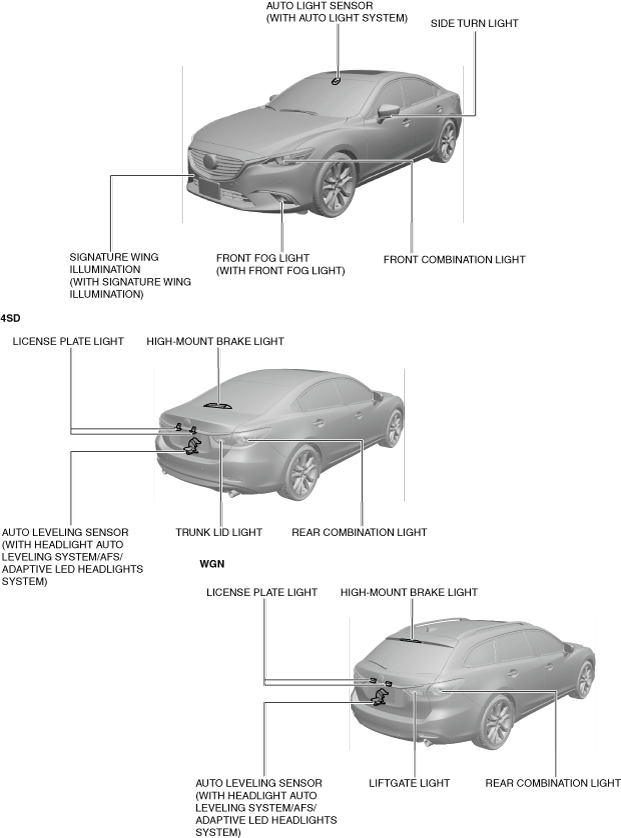

Exterior

am6zzn00005177

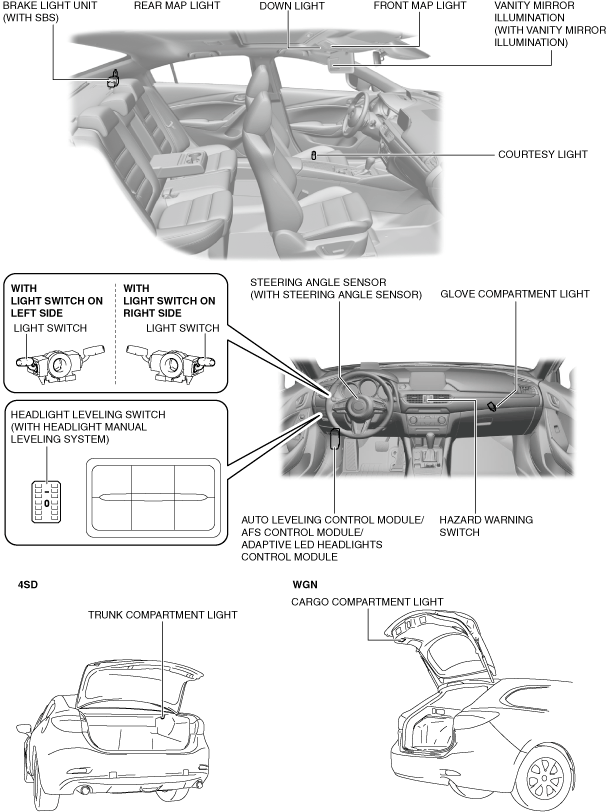

Interior

am6zzn00005131
