FRONT COMBINATION LIGHT

id091800010200


Purpose


Bulb type

•  The front combination light groups and houses together the parts related to the front exterior lights such as the headlight, parking light, front turn light, headlight leveling actuator, wiring harnesses, and connectors.


LED type

•  The front combination light groups and houses together the parts related to the front exterior lights such as the headlight, parking light/running light (with running light system), front turn light, headlight leveling actuator, swivel actuator (with adaptive front lighting system (AFS)), wiring harnesses, and connectors.
•  Energy consumption reduction and maintenance-free design been achieved with the adoption of LEDs on the headlights LO, HI, and parking light/running light (with running light system).
•  Visibility of road signs positioned higher up has been improved by blurring the cut lines of the headlights between light and dark to the extent possible.
•  Visibility of pedestrians and roadside zones has been improved by expanding the light distribution of the headlights.


Function

•  Each light illuminates or flashes when the light switch, turn switch, or hazard warning switch is operated.

Construction

•  A bulb type or LED type headlight is available for the front combination light.

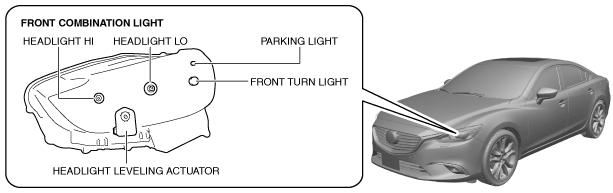

Bulb type

•  The front combination light groups the following parts.
―  Headlight LO
―  Headlight HI
―  Parking light
―  Front turn light
―  Headlight leveling actuator
•  A projector type headlight has been adopted for the headlight LO.
Note
•  Fogging or condensation on the inside of the front combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the front combination lights and has no effect on the light performance.
•  Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the front combination lights rises after the headlights are illuminated and a period of time has elapsed.
am6zzn00003793


LED type

•  The front combination light groups the front turn light.
•  The front combination light is integrated with the following parts:
―  Headlight LO (LED)
―  Headlight HI (LED)
―  Parking light/running light (LED) (With running light system)
―  Headlight leveling actuator
―  Swivel actuator (With adaptive front lighting system (AFS))
―  Side-illuminating LED (LED) (With adaptive LED headlights system)
•  A projector type headlight has been adopted for the headlight LO.
Note
•  Fogging or condensation on the inside of the front combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the front combination lights and has no effect on the light performance.
•  Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the front combination lights rises after the headlights are illuminated and a period of time has elapsed.
•  Heat generated by the illumination of the LEDs is absorbed and dispersed by the heat radiation plates installed to the back of the headlight LO and HI reflectors.
am6zzn00003794
•  The optimized shape of the headlight LO and HI reflectors emits light over a wide area.


Operation

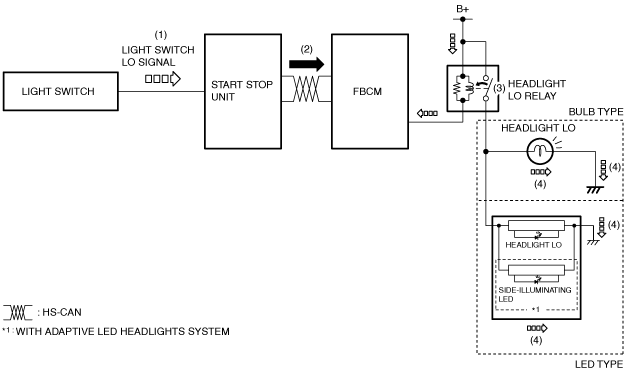

Headlight LO

1.  When the light switch is operated to the HEAD position, a light switch LO signal is input to the start stop unit.

2.  The start stop unit sends the light switch LO signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the light switch LO signal, it turns the headlight LO relay on.

4.  When the headlight LO relay turns on, the headlight LO and side-illuminating LED (with adaptive LED headlights system) are illuminated.

am6zzn00003795

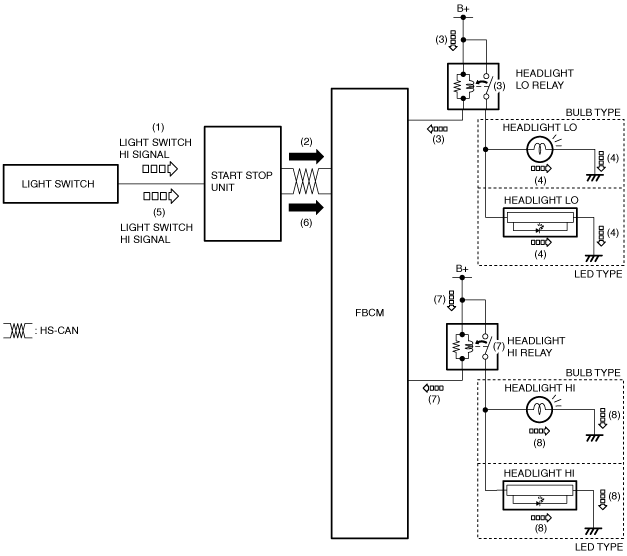

Headlight HI

1.  When the light switch is operated to the HEAD position, a light switch LO signal is input to the start stop unit.

2.  The start stop unit sends the light switch LO signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the light switch LO signal, it turns the headlight LO relay on.

4.  When the headlight LO relay turns on, the headlight LO is illuminated.

5.  When the light switch is operated to the HI position, a light switch HI signal is input to the start stop unit.

6.  The start stop unit sends the light switch HI signal to the front body control module (FBCM) via CAN communication.

7.  When the front body control module (FBCM) receives the light switch HI signal, it turns the headlight HI relay on.

8.  When the headlight HI relay turns on, the headlight HI is illuminated.

am6zzn00003796

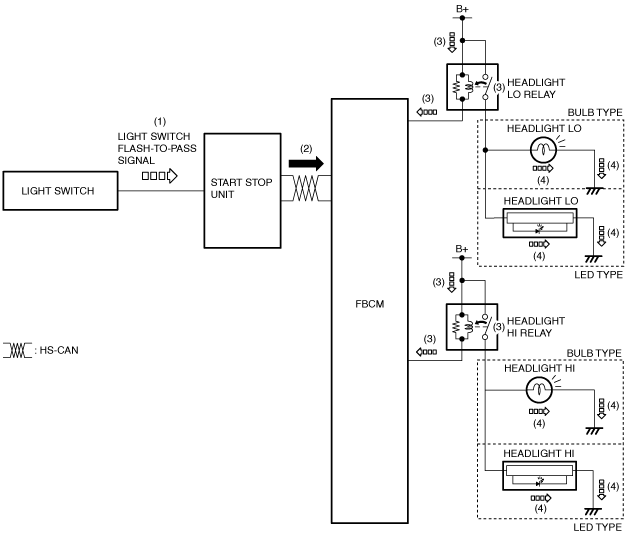

Flash-to-pass

1.  When the light switch is operated to the FLASH-TO-PASS position, a light switch FLASH-TO-PASS signal is input to the start stop unit.

2.  The start stop unit sends the light switch FLASH-TO-PASS signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the light switch FLASH-TO-PASS signal, it turns the headlight LO and HI relays on.

4.  When the headlight LO and HI relays turn on, the headlight LO and HI are illuminated.

am6zzn00003797


Running light (with running light system)

•  Refer to the running light system. (See RUNNING LIGHT SYSTEM.)

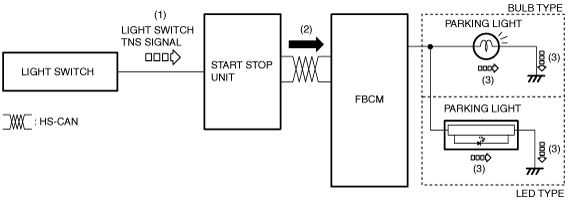

Parking light

1.  When the light switch is operated to the TNS position, a light switch TNS signal is input to the start stop unit.

2.  The start stop unit sends the light switch TNS signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the light switch TNS signal, the parking lights are illuminated.

am6zzn00003798


Front turn light (turn light system)

1.  When the turn switch is operated to the LH or RH position, a turn switch LH or RH signal is input to the start stop unit.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the turn switch LH or RH signal, the front turn light (LH) or (RH) flashes.

am6zzn00003799

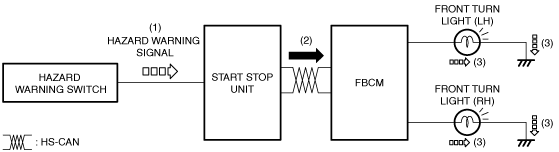

Front turn light (hazard warning system)

1.  When the hazard warning switch is turned on, a hazard warning signal is input to the start stop unit.

2.  The start stop unit sends a hazard warning signal to the front body control module (FBCM).

3.  When the front body control module (FBCM) receives the hazard warning signal, the front turn lights (LH) and (RH) flash.

am6zzn00003800


Headlight leveling actuator

•  Refer to the headlight leveling actuator. (See HEADLIGHT LEVELING ACTUATOR.)


Swivel actuator (with adaptive front lighting system (AFS))

•  Refer to the swivel actuator. (See SWIVEL ACTUATOR.)


Fail-safe

•  Function not equipped.
