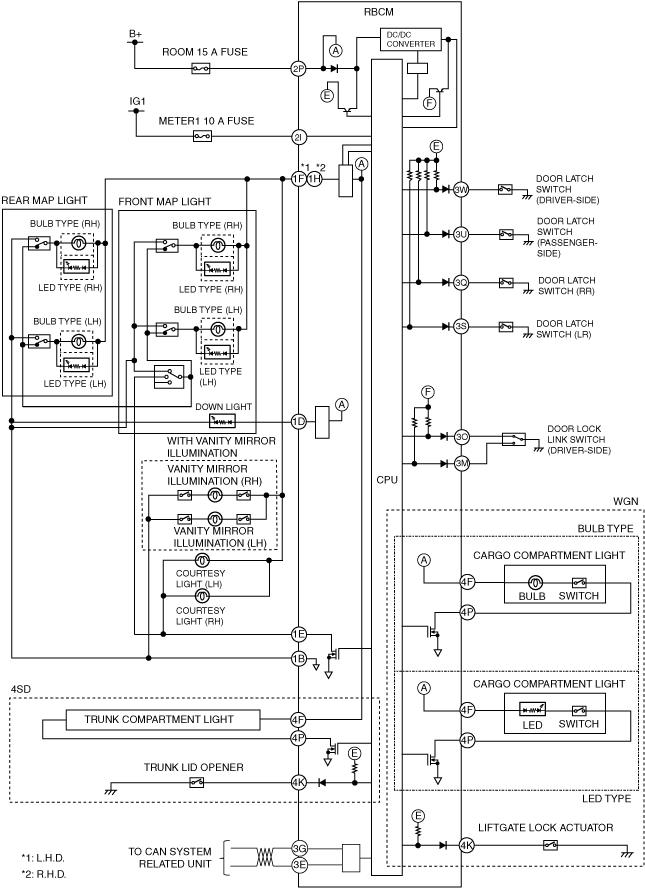

ROOM LIGHT CONTROL SYSTEM

• The room light control system changes the engine switch condition, the illumination condition and illumination level of the room lights (door position) according to whether the doors are opened/closed and locked/unlocked.

• The room light control system is controlled by the rear body control module (RBCM).

Operation condition	Interior light		Lights off condition (Any of the following conditions is met)
Operation condition	Illumination period	Brightness level
With all doors closed (all door latch switches are off) while ignition is switched to off or ACC, a condition is detected where any door is opened (any door latch switch is on).	Approx. 30 min^*1	100 %	• After illumination time elapses^*2 • All doors closed except for trunk lid (4SD)/liftgate (WGN). (All door latch switches are off.)
With any door opened (any door latch switch is on) while ignition is switched to off or ACC, a condition is detected where all doors are closed (all door latch switches are off).	• Approx. 5 s^3 • Approx. 15 s^{1, *4}	60 %	• After illumination time elapses • Lock driver's door lock knob. (Door lock link switch is in lock position.) • Ignition is switched ON (engine off or on).
With all doors closed (all door latch switches are off) while ignition is switched to off or ACC, the door lock link switch is switched from lock to unlock.	Approx. 30 s	100 %	• After illumination time elapses • Lock driver's door lock knob. (Door lock link switch is in lock position.) • Ignition is switched ON (engine off or on).
With all doors closed (all door latch switches are off) while ignition is switched ACC or ON (engine off or on), an ignition switched to off condition is detected.	Approx. 15 s	100 %	• After illumination time elapses • Lock driver's door lock knob. (Door lock link switch is in lock position.) • Ignition is switched ON (engine off or on).
4SD • The trunk lid is opened. WGN • With the cargo compartment light switch is on, the liftgate is opened.	Approx. 30 min^*1	100 %	• After illumination time elapses^*5 • Trunk lid (4SD)/liftgate (WGN) closed. • Cargo compartment light switch is off. (WGN)

*1 :The illumination time can be switched by using the Mazda Modular Diagnostic System (M-MDS) or center display (with center display). (See LIGHTING SYSTEM PERSONALIZATION.)

*2 :After the interior light is turned off according to the cancel conditions, it turns on again if any one of the following conditions is met.

― Ignition is switched ON (engine off or on).

― After all doors are closed, any door is re-opened (after all door latch switches are off, any door latch switch is on).

*3 :There is no remote transmitter inside vehicle.

*4 :There is a remote transmitter inside vehicle.

*5 :When any of the following conditions is met after the trunk compartment light (4SD)/cargo compartment light (WGN) turns off according to the off conditions, the light turns on again.

― The ignition is switched ON (engine off or on).

― After trunk lid is closed, and then opened again. (Trunk lid latch switch off, then switch on) (4SD)

― After liftgate is closed, and then opened again. (Liftgate latch switch off, then switch on) (WGN)

― Any door is opened/closed. (Any door latch switch on, then switch off)

― Door is locked/unlocked. (Door lock-link switch locked, then switch unlocked)

*1 :While the cargo compartment light switch is on.

Type	Room light control system
Front map light	Front area of roof	×
Rear map light	Center area of roof	×
Courtesy light	Front door trim	×
Trunk compartment light (4SD)	Trunk compartment	×
Cargo compartment light (WGN)	Cargo compartment	×^*1
Vanity mirror illumination	Sunvisor	—
Down light	Front map light	×

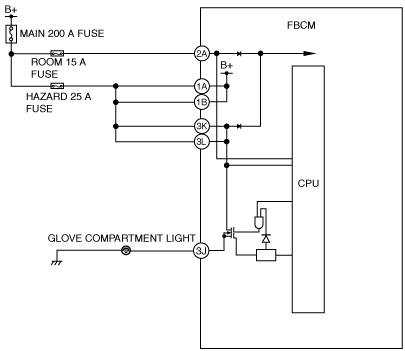

Glove compartment light	Glove compartment	—

*1 :Illumination time can be changed using the Mazda Modular Diagnostic System (M-MDS) or center display (with center display). (See LIGHTING SYSTEM PERSONALIZATION.)
