CARGO COMPARTMENT LIGHT

id091800012600

Purpose

• The cargo compartment light illuminates the cargo compartment interior when the liftgate is opened.

Function

• When the liftgate is opened, illuminates by the cargo compartment light switch turning on.

Construction

• The cargo compartment light is installed to the liftgate lower trim.

• A bulb type or LED type is available for the cargo compartment light.

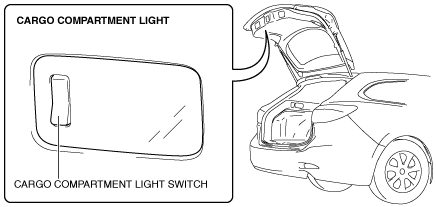

am6zzn00003872

Operation

1. When the liftgate opens, the liftgate latch switch turns on and a liftgate latch switch on signal is input to the rear body control module (RBCM).

2. When the rear body control module (RBCM) inputs the liftgate latch switch on signal, electric current flows to the cargo compartment light.

3. When the cargo compartment light switch turns on, electric current flows to the cargo compartment light.

4. When electric current flows to the cargo compartment light, the cargo room light illuminates.

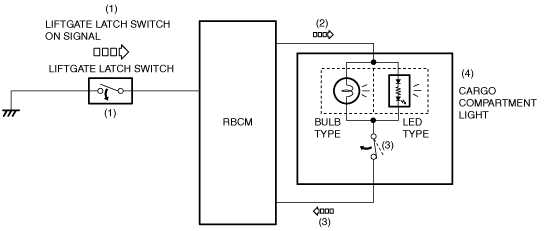

am6zzn00003873

Fail-safe

• Function not equipped.
