SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION

id091800204500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am6zzw00012752

5.  Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION.)

6.  Remove the lower grille molding. (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)

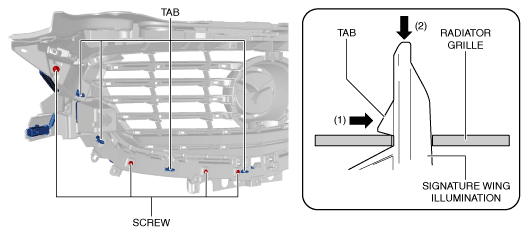

7.  Remove the screws.

am6zzw00014013

8.  While pressing the signature wing illumination tabs in the direction of arrow (1) shown in the figure, press the signature wing illumination in the direction of arrow (2) shown in the figure, and detach the signature wing illumination tabs from the radiator grille.

9.  Remove the signature wing illumination.

am6zzw00014014

10.  Install in the reverse order of removal.
