FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

Front Fog Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front splash shield No.2. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Partially peel back the mudguard and front under cover No.1. (See MUDGUARD REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am6zzw00012779

5.  Remove the screws.

6.  Pull out the pins from the bracket to remove the front fog light and bracket.

am6zzw00009228

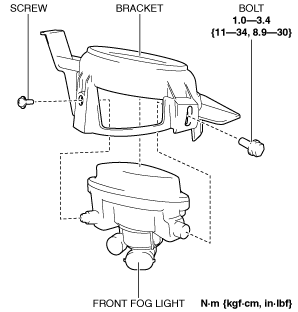

7.  Remove the bolt and screw.

am6zzw00012780

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

Front Fog Light (LED Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the forrowing parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Signature wing illumination short cord (with signature wing illumination) (See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION.)

3.  Remove the screws.

am6zzw00014742

4.  Remove the front fog light and front fog light bracket as a single unit.

5.  Remove the bolts.

am6xuw00009122

6.  Remove the front fog light.

7.  Install in the reverse order of removal.

8.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
