HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

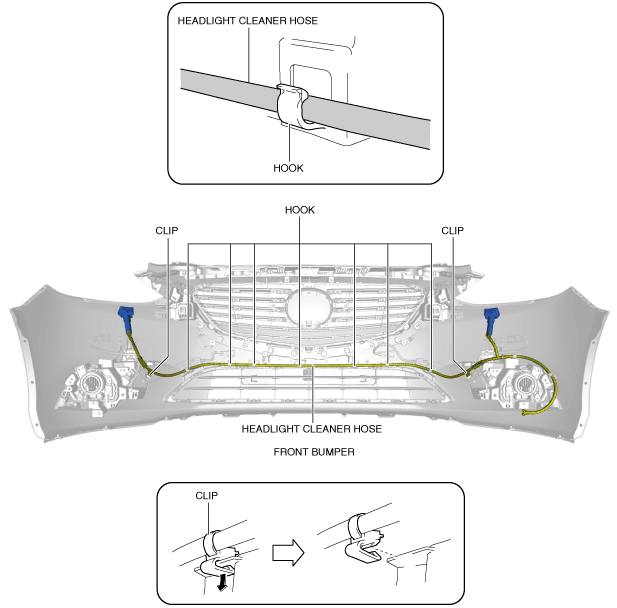

4.  Remove clips from the front bumper.

am6zzw00012862

5.  Remove the headlight cleaner hose from hooks.

6.  Disconnect the joint pipes from the headlight cleaner actuator. (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)

7.  Remove the headlight cleaner hose.

8.  Install in the reverse order of removal.
