AM/FM ANTENNA AMPLIFIER [WITH CENTER DISPLAY]


id0920zz014200


Purpose, Function

•  Amplifies the electric signal from the glass antenna and sends it to the tuner and amp unit (TAU).

Construction

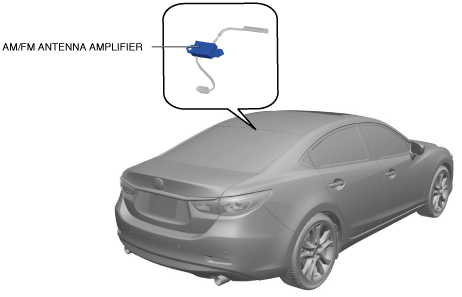

•  The AM/FM antenna amplifier is located in the rear header.
am6zzn00003464

Fail-safe

•  Not applicable
