POWER SYSTEMS

id092100960000


Outline

•  System in which electric current from the battery supplies power to each electrical part.
•  There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.
―  Supply of direct power from battery
―  Supply of power by switching ignition ON (engine off)
―  Supply of power by switching ignition ON (engine on)

Specification

SYKACTIV-G 2.0,SYKACTIV-G 2.5

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Relay box
Wiring harness-integrated type
Main fuse
DCDC fuse rating (without i-ELOOP)
50 A
DCDC fuse rating (with i-ELOOP)
200 A
EPAS fuse rating
60 A
MAIN fuse rating
200 A
STARTER fuse rating (without i-ELOOP)
250 A
STARTER fuse rating (with i-ELOOP)
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
10 A

SKYACTIV-D 2.2

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Relay box
Wiring harness-integrated type
Main fuse
DCDC fuse rating (with i-ELOOP)
200 A
GLOW fuse rating
80 A
EPAS fuse rating
60 A
PTC fuse rating (with i-ELOOP and PTC heater)
100 A
MAIN fuse rating
200 A
STARTER fuse rating (without i-ELOOP)
450 A
STARTER fuse rating (with i-ELOOP)
250 A
Accessory socket
Rated voltage
DC 12 V
Rated load
10 A

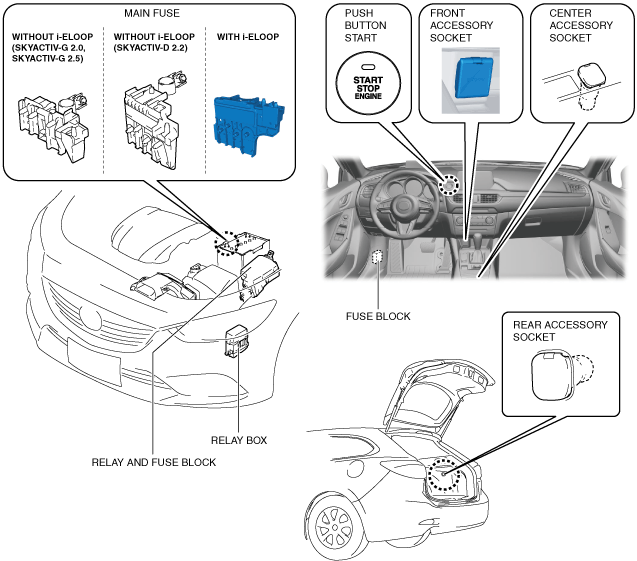

Structural view

am6zzn00004485
