CORNER PLATE INSTALLATION [PANEL REPLACEMENT]


id098008610500


Symbol Mark

am6zzb00000537

Installation Procedure


4SD

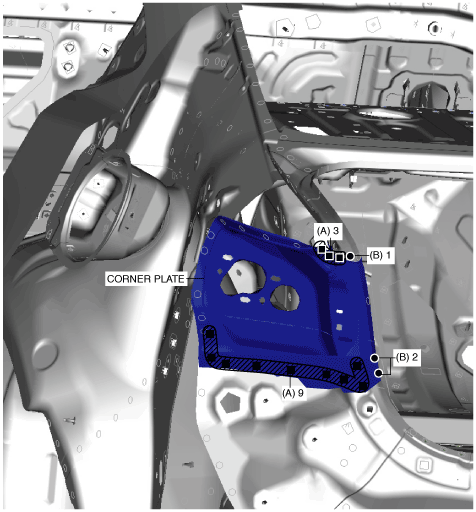

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 12 locations indicated by (A) shown in the figure.

5.  Spot weld the 3 locations indicated by (B) shown in the figure, then install the corner plate.

am6zzb00000435


WGN

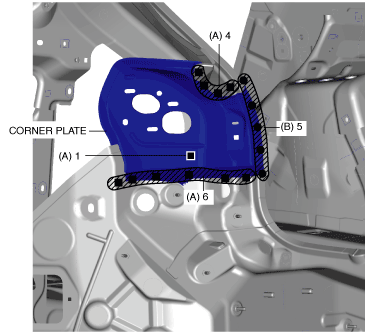

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 11 locations indicated by (A) shown in the figure.

5.  Spot weld the 5 locations indicated by (B) shown in the figure, then install the corner plate.

am6zzb00000436
