ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am6zzb00000480

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

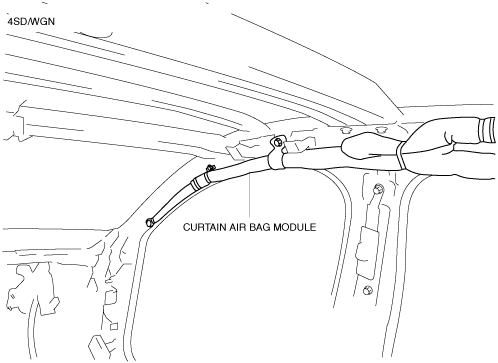

Front-side

am6zzb00000481

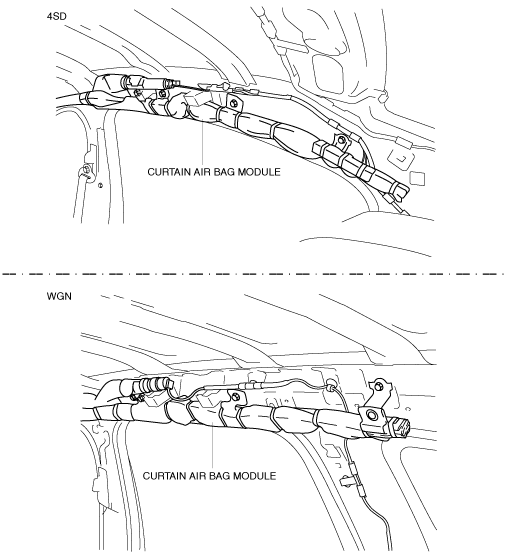

Rear-side

am6zzb00000482

4SD

1.  Drill the 82 locations shown in the figure.

am6zzb00000483

2.  Remove the roof panel.

WGN

1.  Drill the 110 locations shown in the figure.

am6zzb00000484

2.  Remove the roof panel.
