ROOF PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744400

Symbol Mark

am6zzb00000543

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

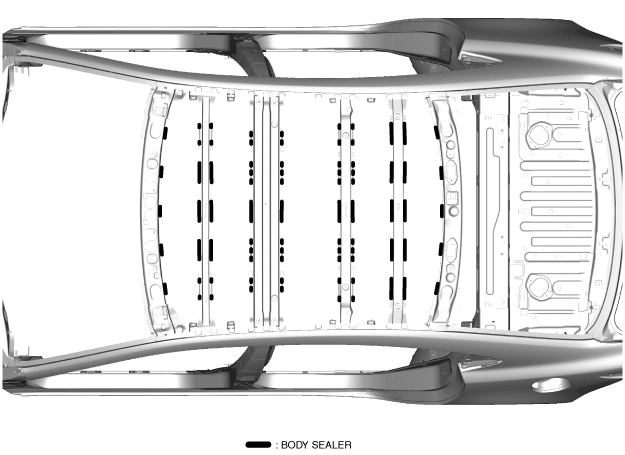

4.  Apply the body sealer to the position shown in the figure.

am6zzb00000486

5.  Plug weld the 44 locations indicated by (A) shown in the figure.

6.  Spot weld the 38 locations indicated by (B) shown in the figure, then install the roof panel.

am6zzb00000487

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

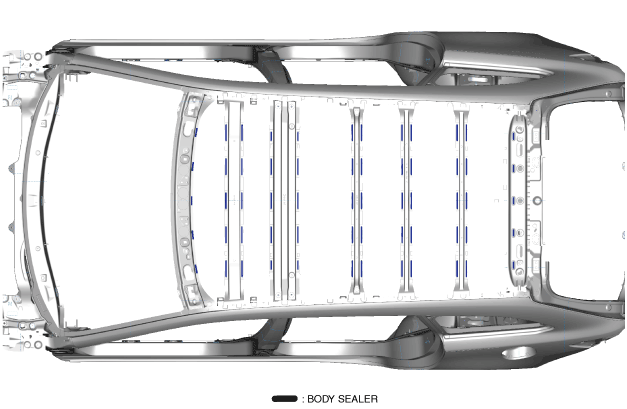

4.  Apply the body sealer to the position shown in the figure.

am6zzb00000488

5.  Plug weld the 72 locations indicated by (A) shown in the figure.

6.  Spot weld the 38 locations indicated by (B) shown in the figure, then install the roof panel.

am6zzb00000489
