REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

am6zzb00000539

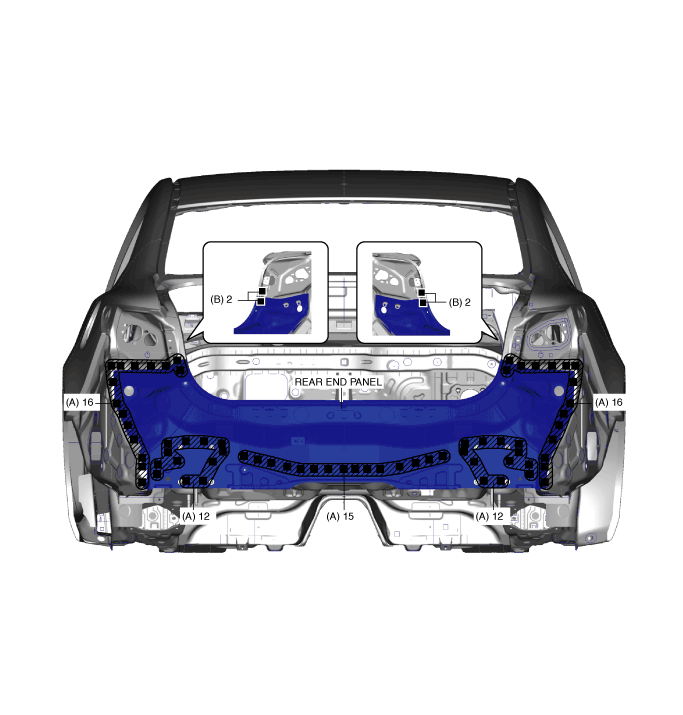

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 71 locations indicated by (A) shown in the figure.

5.  Plug weld the 4 locations indicated by (B) from the room side shown in the figure, then install the rear end panel.

am6zzb00000449

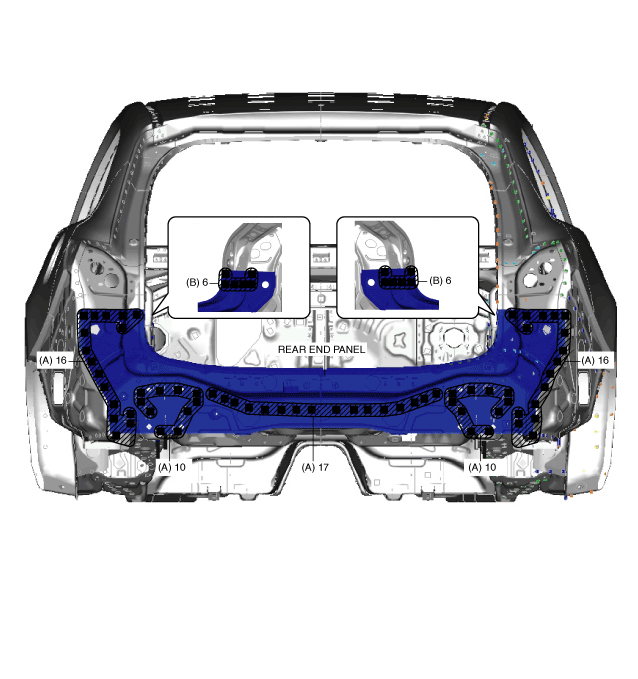

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 69 locations indicated by (B) shown in the figure.

5.  Plug weld the 12 locations indicated by (B) from the room side shown in the figure, then install the rear end panel.

am6zzb00000450
