FRONT PILLAR REMOVAL [PANEL REPLACEMENT]

id098008744700

Symbol Mark

am6zzb00000379

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

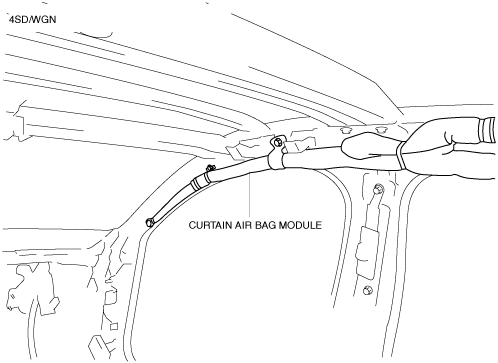

Front-side

am6zzb00000380

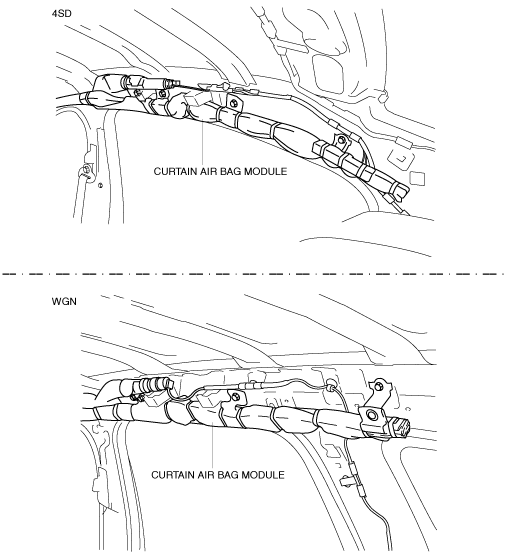

Rear-side

am6zzb00000381

Caution

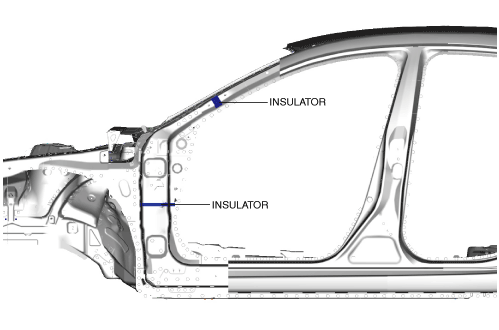

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

am6zzb00000382

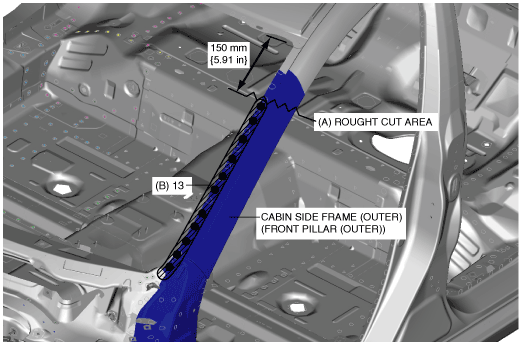

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

am6zzb00000383

am6zzb00000384

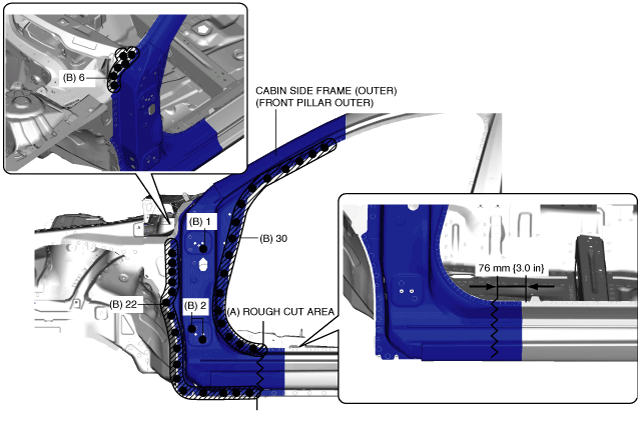

2.  Drill the 74 locations indicated by (B) shown in the figure, then remove the cabin side frame (outer) (front pillar (outer)).

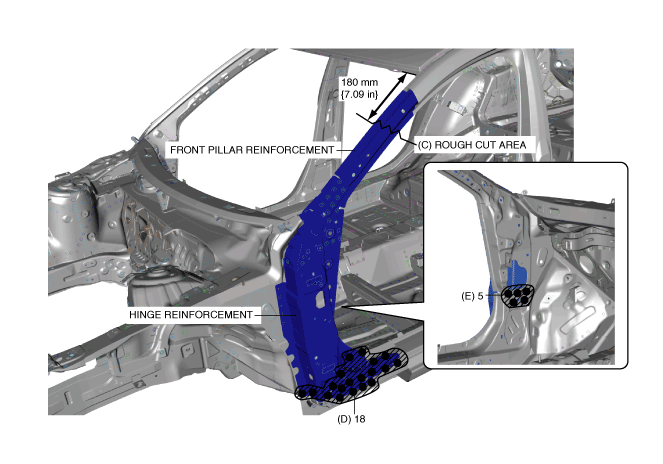

3.  Rough cut the location (C) shown in the figure.

am6zzb00000385

4.  Drill the 18 locations indicated by (D) shown in the figure.

5.  Drill the 5 locations indicated by (E) from the room side shown in the figure, then front pillar reinforcement and hinge reinforcement as a single unit.

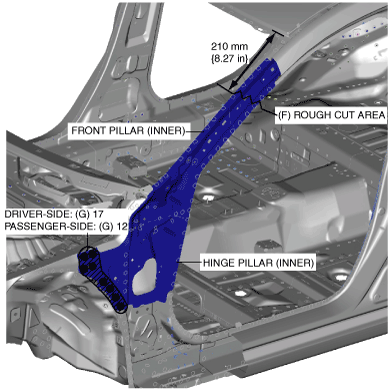

6.  Rough cut the location indicated by (F) shown in the figure.

am6zzb00000386

7.  Drill the 17 locations (driver-side), 12 locations (passenger-side) indicated (G) shown in the figure, then remove the front pillar (inner) and hinge pillar (inner) as a single unit.
