FRONT PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744800

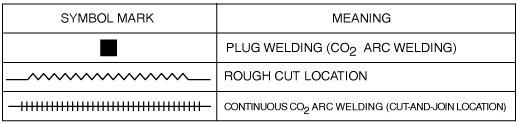

Symbol Mark

am6zzb00000532

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

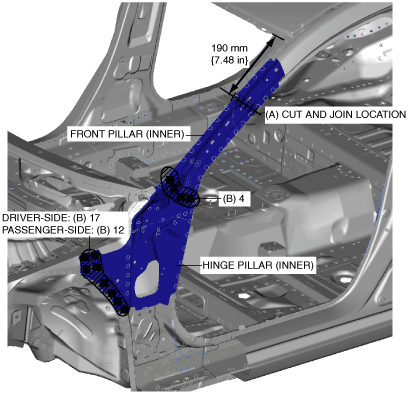

4.  Cut and join location the indicated by (A) shown in the figure, then install the front pillar (inner).

5.  Plug weld the 21 locations (LH), 16 locations (RH) indicated by (B) shown in the figure, then install the hinge pillar (inner).

am6zzb00000388

6.  Plug weld the 5 locations indicated by (C) from the room side shown in the figure.

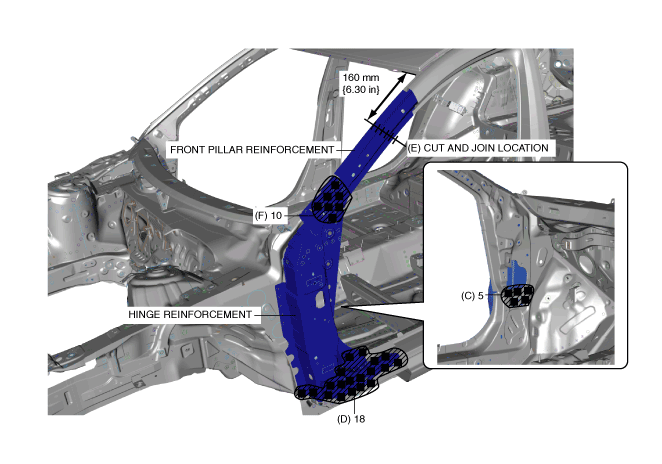

7.  Plug weld the 18 locations indicated by (D) shown in the figure, then install the hinge reinforcement.

8.  Cut and join the location indicated by (E) shown in the figure.

9.  Plug weld the 10 locations indicated by (F) shown in the figure, then install the front pillar reinforcement.

am6zzb00000389

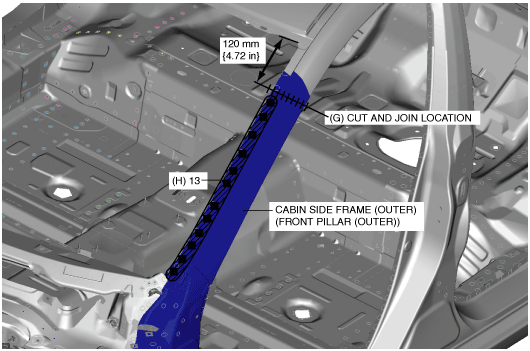

10.  Cut and join the 2 locations indicated by (G) shown in the figure.

am6zzb00000390

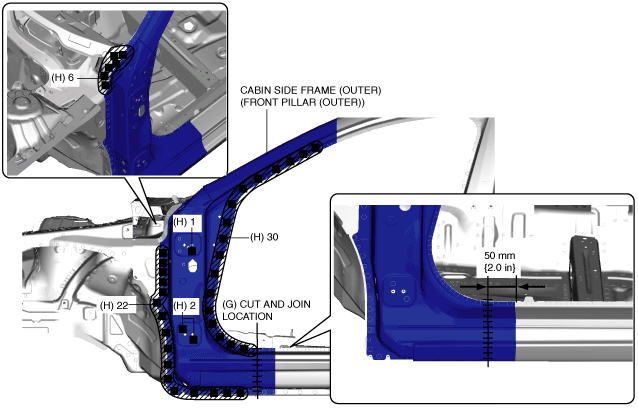

11.  Plug weld the 74 locations indicated by (H) shown in the figure, then install the cabin side frame (outer).

am6zzb00000515
