REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

am6zzb00000535

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

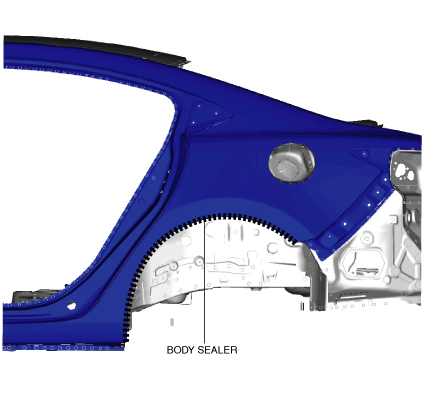

4.  Before installing new parts, apply body sealer to the wheel arch line.

am6zzb00000419

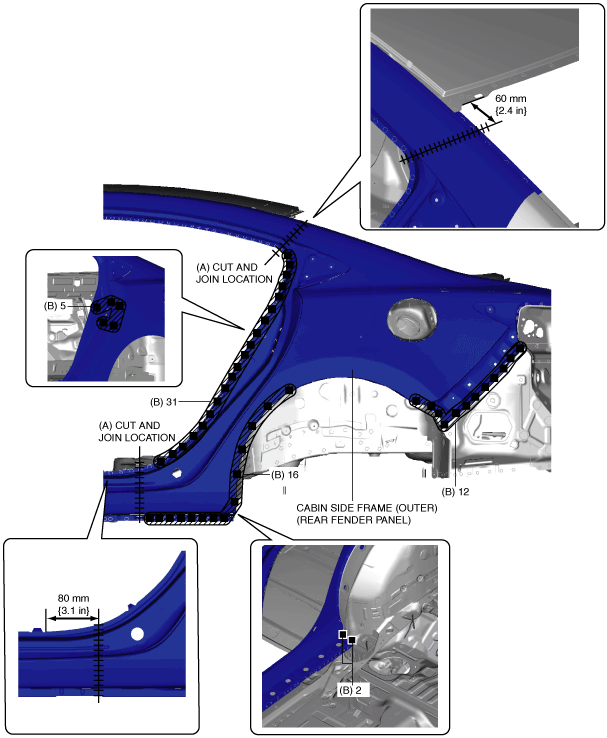

5.  Cut and join the 2 locations indicated by (A) shown in the figure.

6.  Plug weld the 66 locations indicated by (B) shown in the figure.

am6zzb00000420

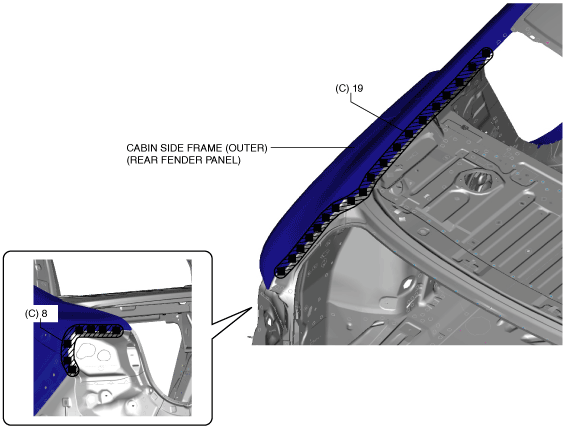

7.  Plug weld the 27 locations indicated by (C) shown in the figure, then install the cabin side frame (rear fender panel).

am6zzb00000421

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

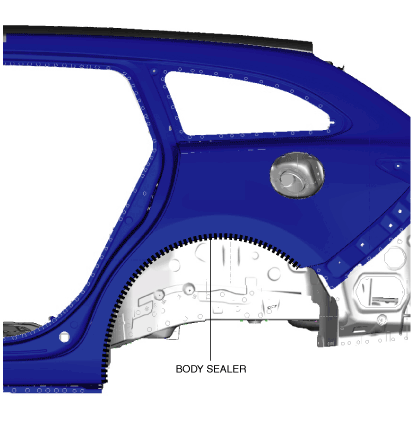

4.  Before installing new parts, apply body sealer to the wheel arch line.

am6zzb00000422

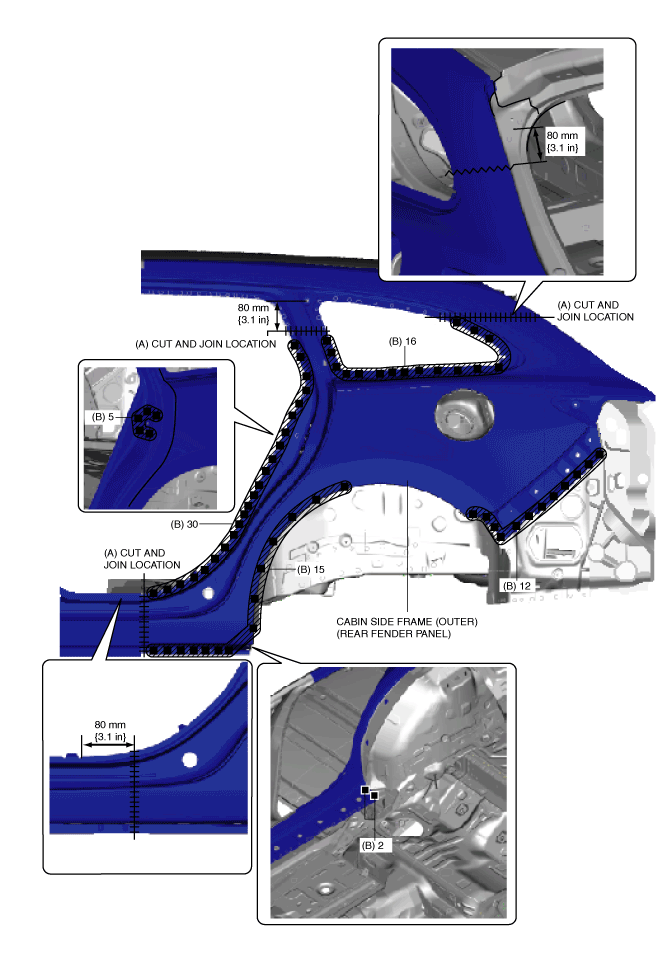

5.  Cut and join the 3 locations indicated by (A) shown in the figure.

6.  Plug weld the 80 locations indicated by (B) shown in the figure.

am6zzb00000423

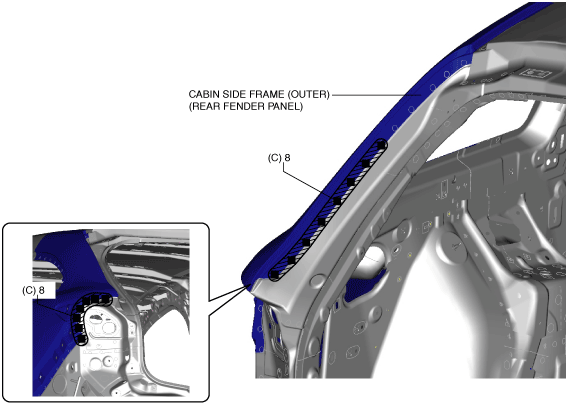

7.  Plug weld the 16 locations indicated by (C) shown in the figure, then install the cabin side frame (outer) (rear fender panel).

am6zzb00000424
