DUMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

• After repairing the body, attach the dumping sheet to the location shown in the figure for noise insulation.

4SD

2WD

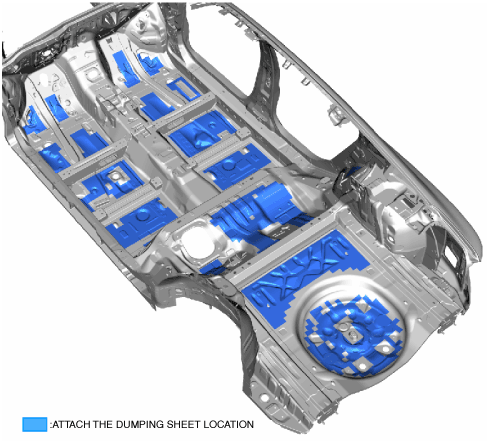

VIN: JMZ GJ42* (L.H.D.), JMZ GJ62* (L.H.D.), JM7 GJ4S*, JM7 GJ62*

am6zzb00000554

VIN: JMZ GJ42* (R.H.D.), JMZ GJ62* (R.H.D.), JM0*, JM6*

am6zzb00000555

4WD

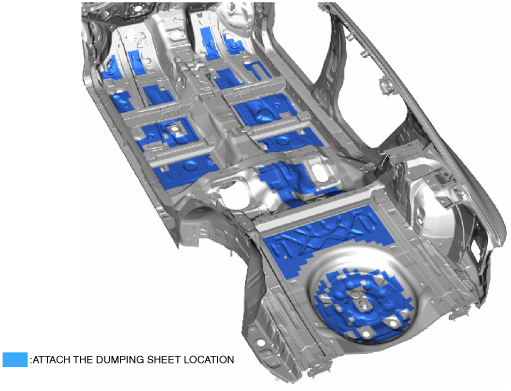

VIN: JMZ GJF2* (L.H.D.)

am6zzb00000556

VIN: JMZ GJF2*(R.H.D.)

am6zzb00000557

WGN

2WD

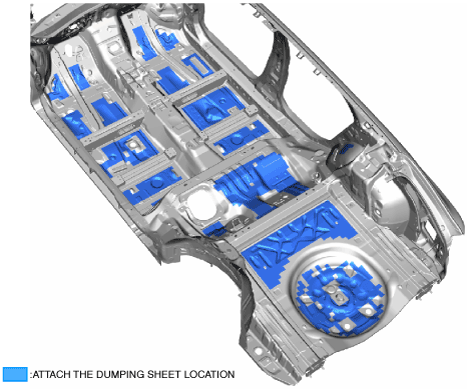

VIN: JMZ GJ69* (L.H.D.), JM7 GJ4W*, JMZ GJ69

am6zzb00000558

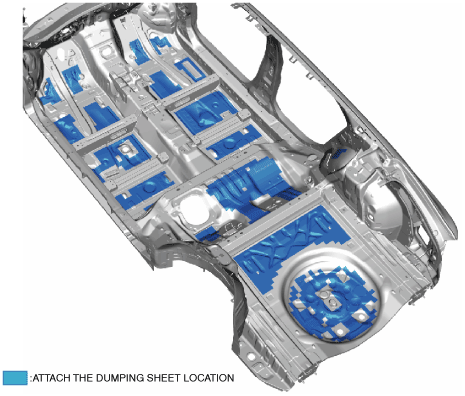

VIN: JMZ GJ69* (R.H.D.), JM0*, JM6*

am6zzb00000559

4WD

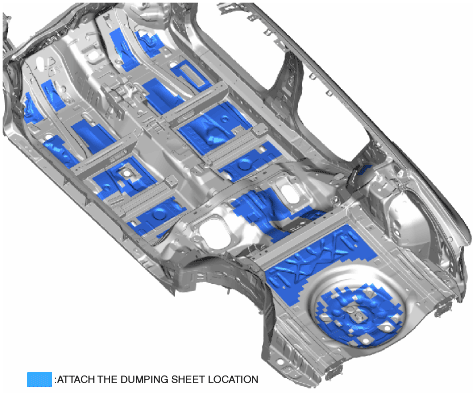

VIN: JMZ GJF9* (L.H.D.)

am6zzb00000560

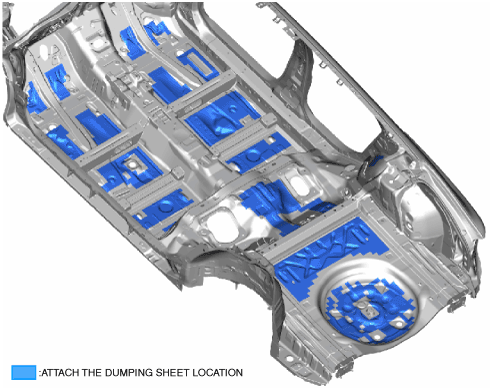

VIN: JMZ GJF9* (R.H.D.)

am6zzb00000561
