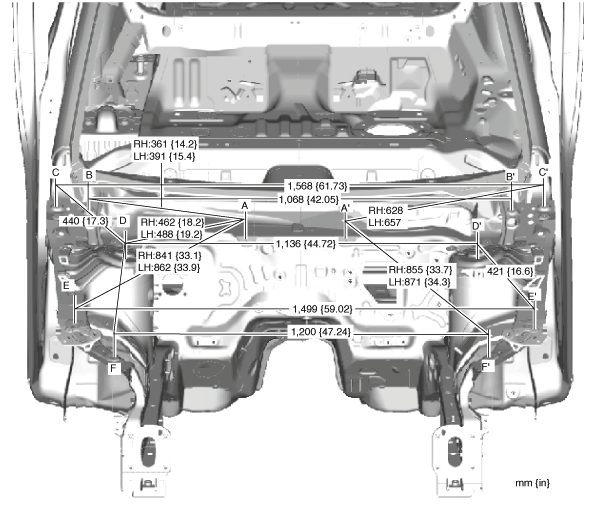

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
id098010990100
am6zzb00000503
|
aatjjb00000296
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Cowl panel installation nut
|
M8
|
|
B
|
Cowl panel installation nut
|
M8
|
|
C
|
Bonnet hinge installation nut
|
M8
|
|
D
|
Suspension housing (upper) datum hole
|
Φ10.2 {0.402}
|
|
E
|
Front fender panel installation nut
|
M6
|
|
F
|
Front fender panel installation nut
|
M6
|
