CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

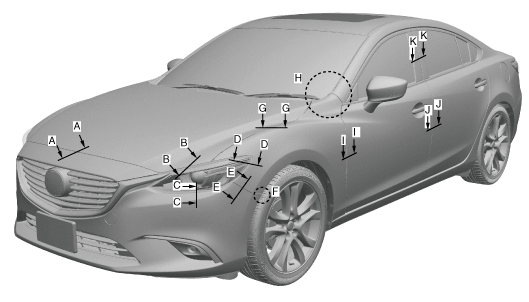

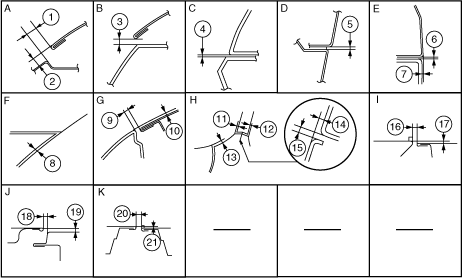

Front View

am6zzb00000603

am6zzb00000601

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

2.8 {0.11}

5.3 {0.209}

1.7 {0.067}

2.0 {0.079}

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

6.7 {0.264}

8.6 {0.339}

4.8 {0.189}

2.5 {0.098}

C

4

1.8 {0.078}

3.3 {0.13}

0.3 {0.01}

1.5 {0.059}

D

5

1.8 {0.071}

3.1 {0.12}

0.5 {0.02}

1.3 {0.051}

E

6

0.5 {0.051}

1.3 {0.051}

0.5 {0.051}

-

7

0.5 {0.051}

1.2 {0.047}

-0.2 {-0.008}

-

F

8

0

1.5 {0.059}

-1.5 {-0.059}

-

G

9

3.3 {0.13}

4.3 {0.169}

2.3 {0.091}

1.2 {0.047}

10

0

1.0 {0.039}

-1.0 {-0.039}

-

H

11

0

1.0 {0.039}

-1.0 {-0.039}

-

12

0

1.0 {0.039}

-1.0 {-0.039}

-

13

0

1.2 {0.047}

-1.2 {-0.047}

-

14

0

1.5 {0.059}

-1.5 {-0.059}

-

15

2.3 {0.091}

3.5 {0.138}

1.1 {0.043}

1.2 {0.047}

I

16

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

17

0

1.0 {0.039}

-1.0 {-0.039}

-

J

18

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

19

0

1.0 {0.039}

-1.0 {-0.039}

-

K

20

5.0 {0.20}

6.9 {0.27}

3.1 {0.12}

1.9 {0.075}

21

0.3 {0.012}

2.3 {0.091}

-1.7 {-0.067}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	2.8 {0.11}	5.3 {0.209}	1.7 {0.067}	2.0 {0.079}
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	6.7 {0.264}	8.6 {0.339}	4.8 {0.189}	2.5 {0.098}
C	4	1.8 {0.078}	3.3 {0.13}	0.3 {0.01}	1.5 {0.059}
D	5	1.8 {0.071}	3.1 {0.12}	0.5 {0.02}	1.3 {0.051}
E	6	0.5 {0.051}	1.3 {0.051}	0.5 {0.051}	-
7	0.5 {0.051}	1.2 {0.047}	-0.2 {-0.008}	-
F	8	0	1.5 {0.059}	-1.5 {-0.059}	-
G	9	3.3 {0.13}	4.3 {0.169}	2.3 {0.091}	1.2 {0.047}
10	0	1.0 {0.039}	-1.0 {-0.039}	-
H	11	0	1.0 {0.039}	-1.0 {-0.039}	-
12	0	1.0 {0.039}	-1.0 {-0.039}	-
13	0	1.2 {0.047}	-1.2 {-0.047}	-
14	0	1.5 {0.059}	-1.5 {-0.059}	-
15	2.3 {0.091}	3.5 {0.138}	1.1 {0.043}	1.2 {0.047}
I	16	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
17	0	1.0 {0.039}	-1.0 {-0.039}	-
J	18	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
19	0	1.0 {0.039}	-1.0 {-0.039}	-
K	20	5.0 {0.20}	6.9 {0.27}	3.1 {0.12}	1.9 {0.075}
21	0.3 {0.012}	2.3 {0.091}	-1.7 {-0.067}	-

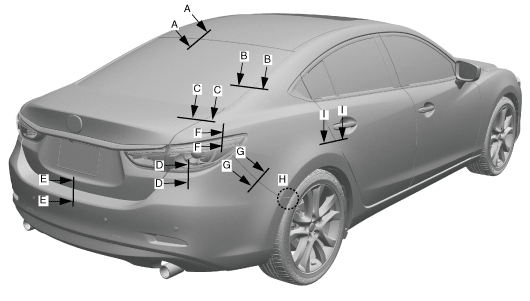

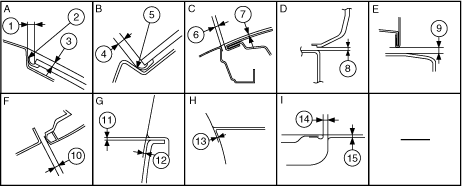

Rear View

4SD

am6zzb00000604

am6zzb00000602

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

4.0 {0.16}

5.7 {0.22}

2.3 {0.091}

-

2

0

0.5 {0.02}

0

-

3

2.0 {0.079}

3.8 {0.15}

0.2 {0.008}

-

B

4

4.0 {0.16}

6.2 {0.24}

1.8 {0.071}

-

5

0

0.5 {0.02}

0

-

C

6

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

7

0.8 {0.031}

1.8 {0.071}

-0.2 {-0.008}

-

D

8

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

E

9

6.0 {0.24}

8.0 {0.31}

4.0 {0.16}

2.1 {0.083}

F

10

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

-

G

11

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

12

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

H

13

0

2.0 {0.079}

-2.0 {-0.079}

-

I

14

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

15

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	4.0 {0.16}	5.7 {0.22}	2.3 {0.091}	-
2	0	0.5 {0.02}	0	-
3	2.0 {0.079}	3.8 {0.15}	0.2 {0.008}	-
B	4	4.0 {0.16}	6.2 {0.24}	1.8 {0.071}	-
5	0	0.5 {0.02}	0	-
C	6	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
7	0.8 {0.031}	1.8 {0.071}	-0.2 {-0.008}	-
D	8	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
E	9	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.1 {0.083}
F	10	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	-
G	11	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
12	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
H	13	0	2.0 {0.079}	-2.0 {-0.079}	-
I	14	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
15	0	1.0 {0.039}	-1.0 {-0.039}	-

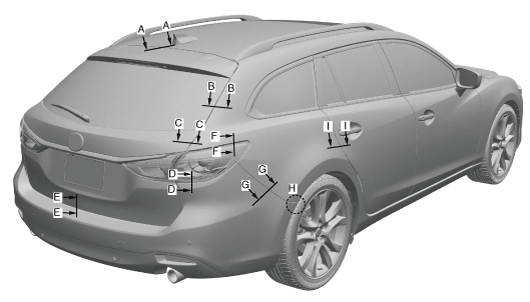

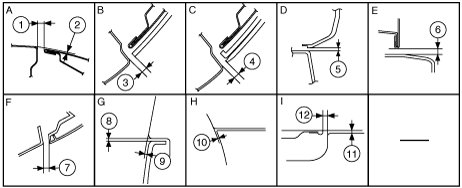

WGN

am6zzb00000605

aatjjb00000343

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

6.5 {0.26}

7.5 {0.30}

5.5 {0.22}

1.2 {0.047}

2

-0.9 {-0.035}

-0.1{-0.004}

-1.9 {-0.075}

-

B

3

4.5 {0.18}

6.8 {0.27}

2.2 {0.087}

2.4 {0.094}

C

4

4.5 {0.18}

6.5 {0.26}

2.5 {0.098}

2.0 {0.079}

D

5

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

1.1 {0.043}

E

6

6.0 {0.24}

8.0 {0.31}

4.0 {0.16}

2.1 {0.083}

F

7

1.8 {0.071}

3.3 {0.13}

0.3 {0.012}

-

G

8

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

9

0.4 {0.016}

1.1 {0.043}

-0.3 {-0.012}

-

H

10

0

2.0 {0.047}

-2.0 {-0.047}

-

I

11

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

12

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	6.5 {0.26}	7.5 {0.30}	5.5 {0.22}	1.2 {0.047}
A	2	-0.9 {-0.035}	-0.1{-0.004}	-1.9 {-0.075}	-
B	3	4.5 {0.18}	6.8 {0.27}	2.2 {0.087}	2.4 {0.094}
C	4	4.5 {0.18}	6.5 {0.26}	2.5 {0.098}	2.0 {0.079}
D	5	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	1.1 {0.043}
E	6	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.1 {0.083}
F	7	1.8 {0.071}	3.3 {0.13}	0.3 {0.012}	-
G	8	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
G	9	0.4 {0.016}	1.1 {0.043}	-0.3 {-0.012}	-
H	10	0	2.0 {0.047}	-2.0 {-0.047}	-
I	11	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
I	12	0	1.0 {0.039}	-1.0 {-0.039}	-
