VALVE SEAT INSPECTION/REPAIR
id011000501300
1. Measure the contact width of the valve face and the valve seat using the valve lapping compound.
-
• If it is not within the specification, resurface the valve seat using the 45° valve seat cutter.
-
Standard valve seat contact width
-
1.37—1.84 mm {0.0540—0.0724 in}
2. Verify that the area where the valve seat contacts the valve face is centered.
-

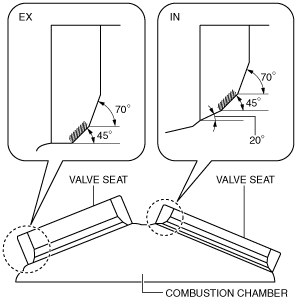

• If the seating position is too high, correct the valve seat using a 70° (IN) 70°(EX) valve seat cutter and a 45° valve seat cutter.
-
• If the seating position is too low, correct as follows:
-
― IN: Correct the valve seat using a 20° valve seat cutter and then using a 45° valve cutter.
― EX: Correct the valve seat using a 45° valve seat cutter.
3. Inspect the valve seat for sinkage. Measure the protruding length (dimension L) of the valve stem using a valve of standard length.
-
• If it is not within the specification, replace the cylinder head.
-
Standard valve seat sinkage amount (Dimension L) [SKYACTIV-G 1.3]
-
IN: 45.02—46.26 mm {1.773—1.821 in}
EX: 45.03—46.27 mm {1.773—1.821 in}
-
Standard valve seat sinkage amount (Dimension L) [SKYACTIV-G 1.5]
-
IN: 44.90—46.14 mm {1.768—1.816 in}
EX: 44.91—46.15 mm {1.769—1.816 in}
-
Standard valve seat sinkage amount (Dimension L) [SKYACTIV-G 2.0]
-
IN: 49.03—50.27 mm {1.931—1.979 in}
EX: 49.03—50.27 mm {1.931—1.979 in}
-
Standard valve seat sinkage amount (Dimension L) [SKYACTIV-G 2.5]
-
IN: 48.93—50.17 mm {1.927—1.975 in}
EX: 48.87—50.11 mm {1.925—1.972 in}
