CYLINDER HEAD ASSEMBLY (II)

id011000504400

Caution
•  When rotating the camshaft using a wrench on the cast hexagon, the wrench may contact the rocker arm and damage the rocker arm. To prevent damage to the rocker arm when holding the camshaft on the cast hexagon, use the wrench at engine rear side as shown in the figure to secure a clearance between the cam.
am3uuw00008968
Note
•  Width at the cast hexagon of the camshaft is 22—24 mm {0.87—0.94 in}.
bes2ze00000139

1.  Assemble in the order indicated in the table.

bes2ze00000157

1
Cylinder head gasket
2
Cylinder head
(See Cylinder Head Assembly Note.)
3
HLA
(See HLA Assembly Note.)
4
Rocker arm
(See Rocker Arm Assembly Note.)
5
Camshaft
(See Camshaft Assembly Note.)
6
Check valve
(See Camshaft Assembly Note.)
7
Camshaft cap
(See Camshaft Assembly Note.)
8
Exhaust camshaft sprocket
(See Exhaust Camshaft Sprocket Assembly Note.)
9
Water pipe


Cylinder Head Assembly Note

Caution
•  The end of the glow plug protrudes from the cylinder head (tightened surface of cylinder block). When removing/installing the cylinder head and placing the cylinder head on a workbench, be careful not to allow the end of the glow plug to contact the cylinder block or workbench. Otherwise, the end of the glow plug could be damaged.

1.  Measure the length of the cylinder head bolt.

•  If it exceeds the maximum specification, replace the cylinder head bolt.
bes2ze00000158
Standard cylinder head bolt length L
169.2—169.8 mm {6.662—6.685 in}
Maximum cylinder head bolt length L
170.5 mm {6.713 in}

2.  When a cylinder head bolt is reused, apply engine oil to any part of the following:

•  Bolt seating surface
•  Cylinder head seating surface

3.  Tighten the cylinder head bolts in the order shown in the following four steps.

ac5wzw00005224

Tightening procedure
Step 1: 13—17 N·m {133—173 kgf·cm, 116—150 in·lbf}
Step 2: 36—40 N·m {3.7—4.0 kgf·m, 27—29 ft·lbf}
Step 3: 85—95°
Step 4: 85—95°
Step 5: 85—95°


HLA Assembly Note

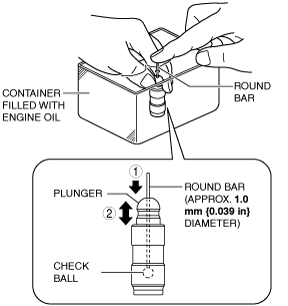

1.  Perform HLA air bleeding using the following procedure:

(1)  Put the HLA in a container filled with engine oil.
Caution
•  Do not insert the round bar firmly because the check ball spring force is extremely weak.
(2)  While lightly pressing the check ball using a round bar (approx. 1.0 mm {0.039 in} diameter), bleed air by moving the plunger up and down.
bes2ze00000141
(3)  Press the end of the plunger in the oil and verify that there is no rebounding feel.
•  If rebounding feel cannot be eliminated, replace the HLA.

2.  Install the HLAs to the same positions as before removal.


Rocker Arm Assembly Note

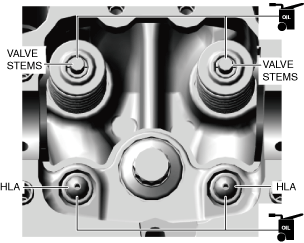

1.  Apply engine oil to the HLAs and the end of the valve stems.

bes2ze00000159

2.  Install the rocker arms to the same positions as before removal.


Camshaft Assembly Note

1.  Verify the key position.

•  If it is not in the position shown in the figure, rotate the crankshaft to set cylinder No.1 to top dead center (TDC).
bes2ze00000160

2.  Apply gear oil (SAE 90 or equivalent) or engine oil to the following locations.

•  Each journal of the cylinder heads
•  Needle roller bearing of the rocker arm
•  Slipper area of the rocker arm (only vehicles with IDEVA)

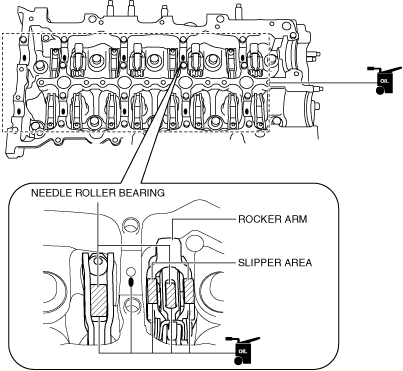

Vehicles with IDEVA

bes2ze00000161

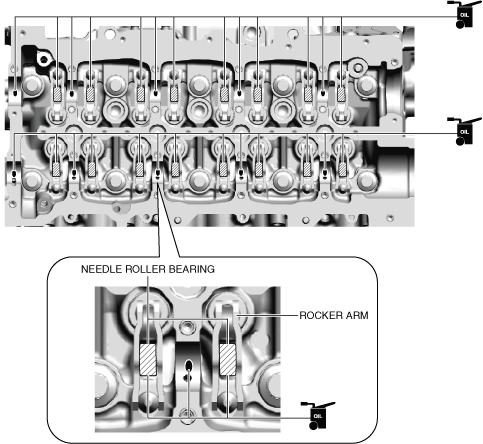

Vehicles without IDEVA

bes2ze00000162

3.  Apply gear oil (SAE 90 or equivalent) or engine oil to the thrust surface (both surfaces front and back) of the front journal on each camshaft.

Note
•  If oil is applied to the front camshaft cap, oil should not be applied to the thrust surface of the front journal.

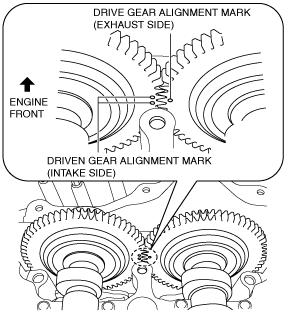

4.  Place the camshaft on the cylinder head and align the alignment marks for each gear as shown in the figure.

bes2ze00000065

5.  Apply gear oil (SAE 90 or equivalent) or engine oil to the center area of each journal of the camshaft.

Vehicles with IDEVA

bes2ze00000163

Vehicles without IDEVA

bes2ze00000164

6.  Install the check valve to the rear camshaft cap using the following procedure. (Only vehicles with IDEVA)

bes2ze00000067

(1)  Apply engine oil to the new check valve O-ring and install it to the check valve.
Caution
•  When installing the check valve O-ring, be careful of the following:
―  Do not drop O-ring
―  Do not damage O-ring
―  Do not apply anything other than engine oil
(2)  Insert the check valve until it contacts the rear camshaft cap.

7.  Apply engine oil to the new rear camshaft cap O-ring and install it to the rear camshaft cap. (Only vehicles with IDEVA)

Note
•  If oil is applied to the front journal thrust surface of each camshaft, oil should not be applied to the front camshaft cap.

8.  Apply gear oil (SAE 90 or equivalent) or engine oil to the thrust surface of the front camshaft cap.

Caution
•  Do not spill sealant agent on the journal.
•  Apply sealant in a single, unbroken line to prevent a seal malfunction.

9.  Apply sealant (LOCTITE 962T or equivalent) to the rear side of the cylinder head or rear camshaft cap along the application line shown in the figure.

Note
•  The permissible range of sealant protrusion is within the shaded areas shown in the figure.
•  To prevent engine oil leakage, seal the journal by applying sealant to the rear side of the cylinder head or rear camshaft cap.
bes2ze00000165
Sealant agent bead width
0.5 mm {0.02 in} or more

Caution
•  Be careful not to damage or drop the O-ring when installing the rear camshaft cap. (Only vehicles with IDEVA)

10.  Install the camshaft caps in the marked number order, and temporarily tighten the camshaft cap installation bolts in two or three passes evenly.

11.  Tighten the camshaft cap installation bolts in two steps in the order shown in the figure.

ac5uuw00008426

Tightening procedure
Step 1: 3.0—6.0 N·m {31—61 kgf·cm, 27—53 in·lbf}
Step 2: 8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}


Exhaust Camshaft Sprocket Assembly Note

1.  Align the knock pin on the end of the camshaft with the notch on the sprocket, then install the exhaust camshaft sprocket to the camshaft.

bes2ze00000166

2.  Hold the exhaust camshaft using a wrench on the cast hexagon, and tighten the sprocket installation bolt.

bes2ze00000070

Tightening torque
123—140 N·m {13—14 kgf·m, 91—103 ft·lbf}
