OIL PUMP DISASSEMBLY
id051700660800

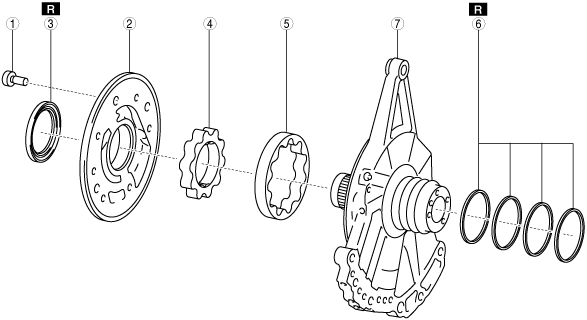

Structural View
bfw2za00000544
|
|
1
|
7 bolts
|
|
2
|
Oil pump cover
|
|
3
|
Oil seal
|
|
4
|
Inner rotor
|
|
5
|
Outer rotor
|
|
6
|
Seal ring
|
|
7
|
Oil pump housing
|
Disassembly Procedure
1. Remove the oil pump cover using the following procedure:
azzjjw00000833
|
|
1
|
7 bolts
|
|
2
|
Oil pump cover
|
azzjjw00000834
|
azzjjw00000835
|
2. Remove the oil seal.
bfw2za00000545
|
3. Remove the inner rotor.
azzjjw00000837
|
4. Remove the outer rotor.
azzjjw00000838
|
5. Remove the seal rings.
bfw2za00000546
|
6. Clean the disassembled parts. (See AUTOMATIC TRANSAXLE CLEANING.)
7. Perform the following inspection and replace a malfunctioning part with a new one.
