REDUCTION PLANETARY GEAR DISASSEMBLY

id051700661300

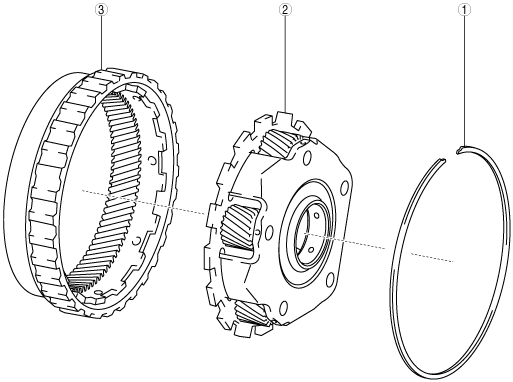

Structural View

bgw3ja00000238

1	Snap ring
2	Reduction planetary carrier
3	Rear internal gear

Disassembly Procedure

1.  Perform the following inspection:

Caution

•  If there is no malfunction based on the results of the inspection, it is not necessary to disassemble the reduction planetary gear.

•  Visual inspection of parts (See VISUAL INSPECTION OF PARTS)

•  Reduction planetary gear inspection (See REDUCTION PLANETARY GEAR INSPECTION)

•  If there is a malfunction, disassemble the reduction planetary gear and replace the malfunctioning part with a new part.

2.  Remove the snap ring.

bgw3ja00000239

3.  Remove the reduction planetary carrier.

bgw3ja00000240

4.  Clean the disassembled parts. (See AUTOMATIC TRANSAXLE CLEANING.)
