INAPPROPRIATE OPERATION AND CONTROL RECORD [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0102h4162300
Purpose
• For the purpose of protecting passengers and the vehicle, the PCM performs protection control according to the vehicle driving conditions/environment surrounding the vehicle.
The inappropriate operation and control record of the protection control executed by the PCM can be displayed using the Mazda Modular Diagnostic System (M-MDS) and it can be used during malfunction diagnosis.
Function/display
• The PCM records the following information as an inappropriate operation and control record.
-
― Inappropriate operation and control code
― Inappropriate operation and control type
― Odometer value

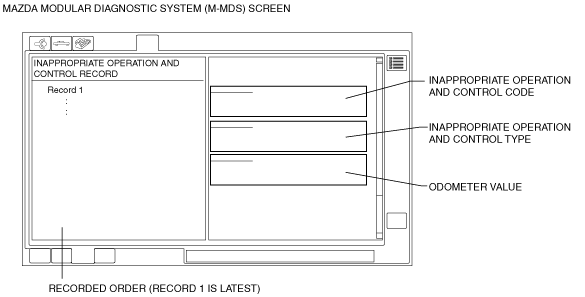

• The Mazda Modular Diagnostic System (M-MDS) reads out the inappropriate operation and control record and indicates it as shown in the figure below.
Inappropriate operation and control code table
|
Inappropriate operation and control code
|
Inappropriate operation and control type
|
|
0x30
|
Temperature restriction control
|
|
0x42
|
Generator connection malfunction
|
|
0x43
|
Abnormal battery/capacitor voltage
|
