CRANKSHAFT PULLEY [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0110h3001000
Purpose, Function
• The crankshaft pulley transmits the drive force to the auxiliary parts via the drive belt.
• The crankshaft pulley suppresses torsional vibration of the crankshaft.

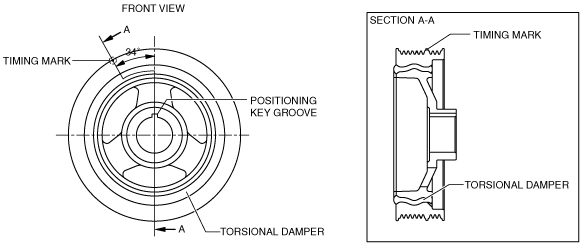

Construction

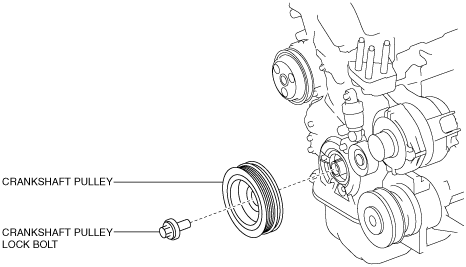

• The crankshaft pulley is installed to the front of the crankshaft.
• The crankshaft pulley has a torsional damper for suppressing torsional vibration of the crankshaft.
• The crankshaft pulley has key groove to match the timing to the crankshaft.
• The crankshaft pulley has a timing mark indicating the piston position.
