ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2]

id0110s5806900


No.1 Engine Mount

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

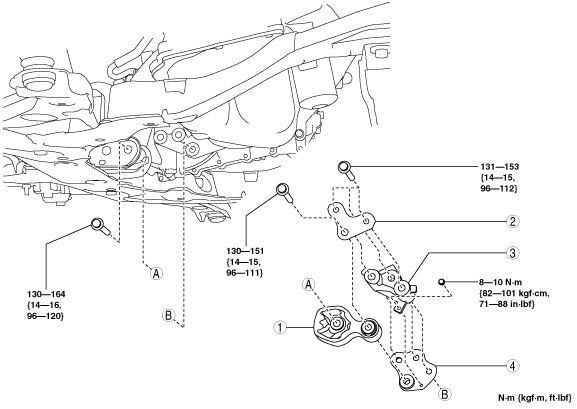

ac5wzw00005878

1
No.1 engine mount rubber
(See No.1 engine mount rubber removal note.)
(See No.1 engine mount installation note.)
2
Bracket plate (No.1)
(See No.1 engine mount installation note.)
3
No.1 engine mount bracket
(See No.1 engine mount installation note.)
4
Bracket plate (No.2)
(See No.1 engine mount installation note.)


No.1 engine mount rubber removal note

1.  Loosen the bolts shown in the figure.

ac5wzw00005067

Note
•  The bracket plate (No.1) can move slightly by loosening the bolts shown in the figure and the No.1 engine mount rubber can be easily removed.

2.  Remove the No.1 engine mount rubber.


No.1 engine mount installation note

1.  Install the No.1 engine mount bracket, plate (No.1), and plate (No.2) and temporarily tighten the installation bolts.

2.  Tighten the bolt shown in the figure.

ac5wzw00005879

Tightening torque
8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

3.  Install the No.1 engine mount rubber and temporarily tighten the installation bolts.

4.  Tighten the No.1 engine mount bracket, plate (No.1) and plate (No.2) installation bolts in the order shown in the figure.

ac5jjw00003896

Tightening torque
131—153 N·m {14—15 kgf·m, 97—112 ft·lbf}

5.  Tighten the No.1 engine mount rubber installation bolts.

ac5wzw00005880


No.3 Engine Mount

Caution
•  Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

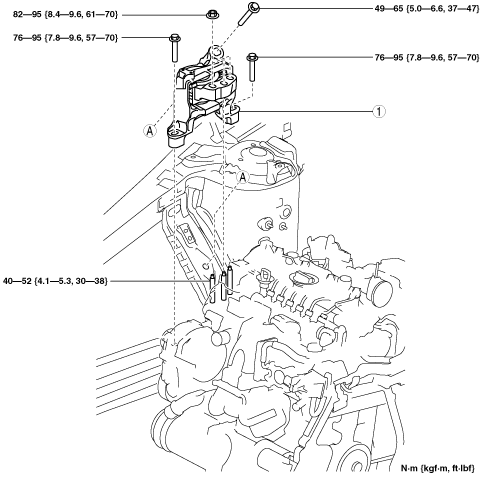

ac5wzw00005886

1
No.3 engine mount
(See No.3 engine mount removal note.)
(See No.3 engine mount installation note.)


No.3 engine mount removal note

1.  Remove the clip and bolt shown in the figure and set the ground cable aside.

am6zzw00010125

2.  Set the PCM component aside using the following procedure:

(1)  Remove the bolts and connector shown in the figure.
am6zzw00010126
(2)  Remove the clips shown in the figure and set the PCM component aside with the PCM connector connected.
am6zzw00010127

3.  Set the wiring harness bracket aside using the following procedure:

(1)  Remove the nut shown in the figure and set the cooler hose aside.
am6zzw00011371
(2)  Remove the bolts shown in the figure and set the wiring harness bracket aside.
am6zzw00011372

4.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Remove the seal plate installed to the underside of the oil pan. (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Caution
•  To prevent deformation of the oil pan, support the engine using the following methods.
―  When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
―  When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover the oil pan to support the oil pan.

6.  Before removing the No.3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.

am6zzw00010130

7.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

am6zzw00010131

Note
•  Paint so that the No.3 engine mount is framed on the body side and the outline of the nut is framed on the No.3 engine mount side.

8.  Remove the No.3 engine mount.


No.3 engine mount installation note

Note
•  When replacing the No.3 engine mount, place a mark at the same position as the one placed before removal.
•  If the No.3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may be loosened.

1.  Tighten the engine front cover stud bolts.

ac5wzw00005891

Tightening torque
40—52 N·m {4.1—5.3 kgf·m, 30—38 ft·lbf}

2.  Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

(1)  Align the alignment marks on the body side and No.3 engine mount, and temporarily tighten the bolts shown in the figure.

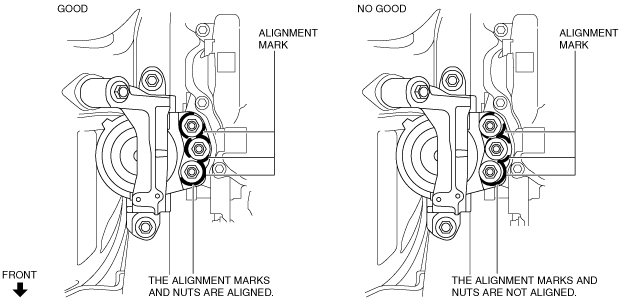

ac5wzw00005268
(2)  Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No.3 engine mount and nuts.
ac5wzw00005269
Note
•  If the alignment marks are deviated, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

3.  Tighten the No.3 engine mount installation bolts and nuts in the order as shown in the figure.

ac5wzw00005892

Tightening torque

Installation position

Tightening torque
1
76—95 N·m {7.8—9.6 kgf·m, 57—70 ft·lbf}
2
82—95 N·m {8.4—9.6 kgf·m, 61—70 ft·lbf}
3
49—65 N·m {5.0—6.6 kgf·m, 37—47 ft·lbf}

4.  Remove the engine lifter or garage jack.

5.  Install the seal plate. (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

6.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

7.  Install the wiring harness bracket and cooler hose.

8.  Install the PCM component using the following procedure:

(1)  Install the clips shown in the figure.
am6zzw00011373
(2)  Install the wiring harness protector and connector.
am6zzw00011374
(3)  Temporarily tighten the bolt shown in the figure.
am6zzw00010133
(4)  Tighten the PCM component installation bolts in the order shown in the figure.
am6zzw00010134
Tightening torque
9—10 N·m {92—101 kgf·cm, 80—88 in·lbf}

9.  Install the ground cable shown in the figure.

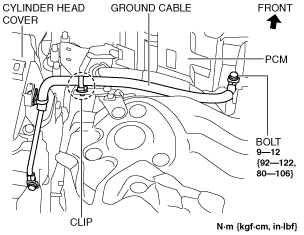

am6zzw00010135


No.4 Engine Mount

Caution
•  Slots have been adopted for the No.4 engine mount bracket installation holes. If the No.4 engine mount bracket is deviated from the original position when installing the No.4 engine mount bracket, engine noise or vibration could increase. Before removing the No.4 engine mount bracket, place alignment marks on the No.4 engine mount bracket so that they can be assembled to the same positions as before removal.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

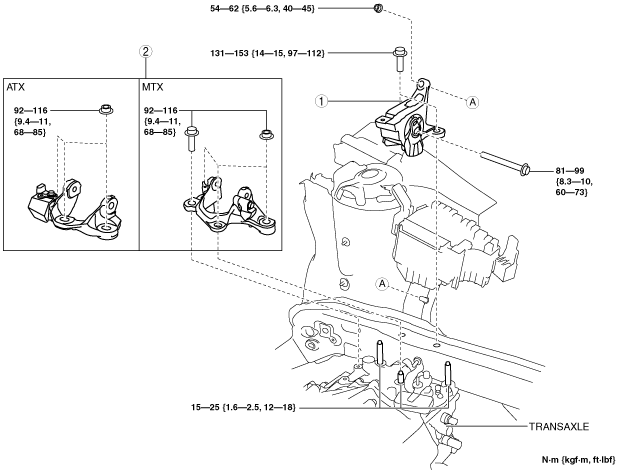

ac5wzw00005270

1
No.4 engine mount rubber
(See No.4 engine mount rubber removal note.)
(See No.4 engine mount rubber installation note.)
2
No.4 engine mount bracket
(See No.4 engine mount bracket removal note.)
(See No.4 engine mount bracket installation note.)


No.4 engine mount rubber removal note

1.  Remove the clips shown in the figure and set the wiring harness protector aside.

ac5uuw00000660

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

Caution
•  To prevent deformation of the transaxle, support the transaxle using the following methods.
―  MTX: Support the clutch housing using a batten of appropriate size.
ac5uuw00000661
―  ATX: Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover the oil pan to support the oil pan.
ac5uuw00000662

3.  Before removing the No.4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.

4.  Remove the No.4 engine mount rubber.


No.4 engine mount bracket removal note

1.  Remove the bolt shown in the figure and set the ground cable aside.

am6zzw00010136

2.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

MTX

ac5wzw00005271

ATX

ac5wzw00005897
Note
•  Paint so that the outline of the nut is framed on the bracket side.

3.  Remove the No.4 engine mount bracket.


No.4 engine mount bracket installation note

Note
•  When replacing the No.4 engine mount bracket, place a mark at the same position as the one placed before removal.
•  If the No.4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may be loosened.

1.  Tighten the transaxle stud bolts.

ac5wzw00005898

Tightening torque
15—25 N·m {1.6—2.5 kgf·m, 12—18 ft·lbf}

2.  Align the alignment marks on the No.4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

MTX

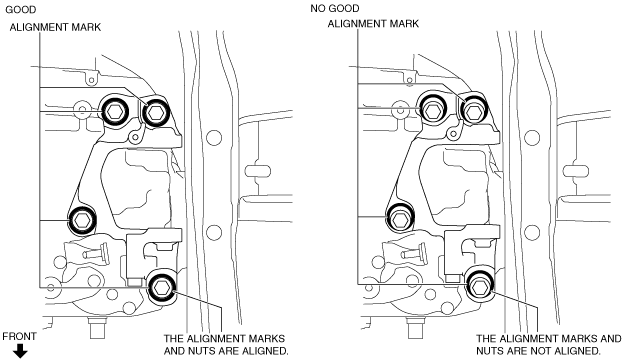

ac5wzw00005272

ATX

ac5wzw00005273

3.  Tighten the No.4 engine mount bracket installation nuts and bolt.

Tightening torque
92—116 N·m {9.4—11 kgf·m, 68—85 ft·lbf}


No.4 engine mount rubber installation note

1.  Install the No.4 engine mount rubber and temporarily tighten the bolts and nut shown in the figure.

ac5wzw00005899

2.  Tighten the No.4 engine mount rubber installation bolts and nut in the order shown in the figure.

ac5wzw00005274

Tightening torque

No.

Tightening torque
1, 2
131—153 N·m {14—15 kgf·m, 97—112 ft·lbf}
3
54—62 N·m {5.6—6.3 kgf·m, 40—45 ft·lbf}
4
81—99 N·m {8.3—10 kgf·m, 60—73 ft·lbf}

3.  Remove the engine lifter or garage jack.

4.  Install in the reverse order of removal.
