OIL PAN [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0111h5002300

Purpose, Function

• The engine oil required for lubrication in the engine accumulates in the oil pan.

Construction

• The oil pan is installed on the lower part of the cylinder block.

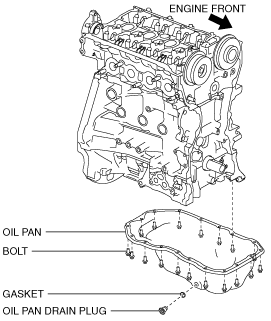

SKYACTIV-G 2.0

am3uun00001894

SKYACTIV-G 2.5

am6zzn00002420

• Silicone sealant with excellent sealing has been adopted for the oil pan gasket.
