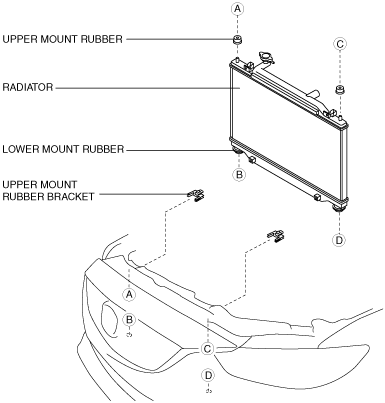

•  The radiator disperses the engine coolant heat flowing internally by receiving against the vehicle while it is driven or air flow produced by the cooling fan.

•  The radiator is installed to the front of the engine compartment.

•  Four mounting rubbers are utilized to decrease vibration.

am6zzn00002430

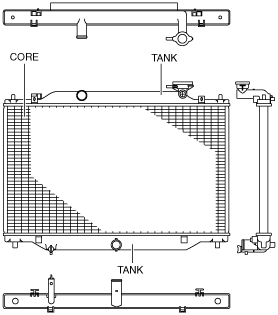

•  A down-flow radiator with corrugated fins has been adopted.

•  The radiator tanks are made of plastic and the core is made of aluminum for weight reduction.

am6zzn00002431
