COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2]

id0113z7265200

Purpose, Function

• Introduces intake manifold vacuum to the compressor bypass valve actuator.

• The compressor bypass valve opens according to the control signal from the PCM.

Construction

• The compressor bypass solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.

ac5wzn00001942

• The compressor bypass solenoid valve consists of a coil, spring, and plunger.

ac5wzn00001943

Operation

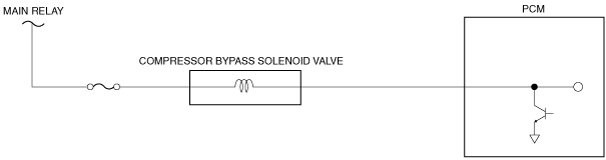

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the compressor bypass solenoid valve.

ac5wzn00001944

• By opening the compressor bypass solenoid valve, intake manifold vacuum is introduced to the compressor bypass valve actuator.
