CHARGE AIR COOLER [SKYACTIV-D 2.2]

id0113z7706800

Purpose, Function

• Cools the compressed/heated intake air.

Construction

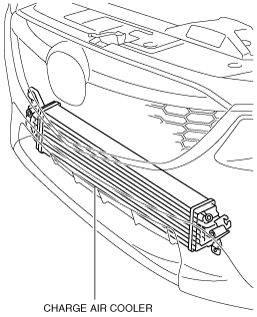

• The charge air cooler is installed to the backside of the front bumper.

ac5wzn00001959

Operation

• To concentrate the air density of the compressed/heated intake air, it is cooled by the charge air cooler for enhanced intake air efficiency.

ac5wzn00001960
