INTAKE-AIR SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0113z9003300

Purpose, Outline

• A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.

Structural View

am6zzn00002474

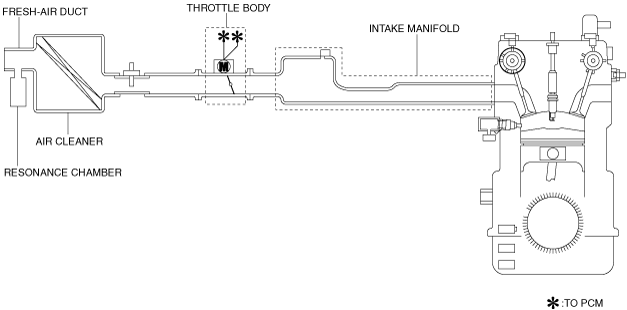

System Diagram

ac5wzn00001324

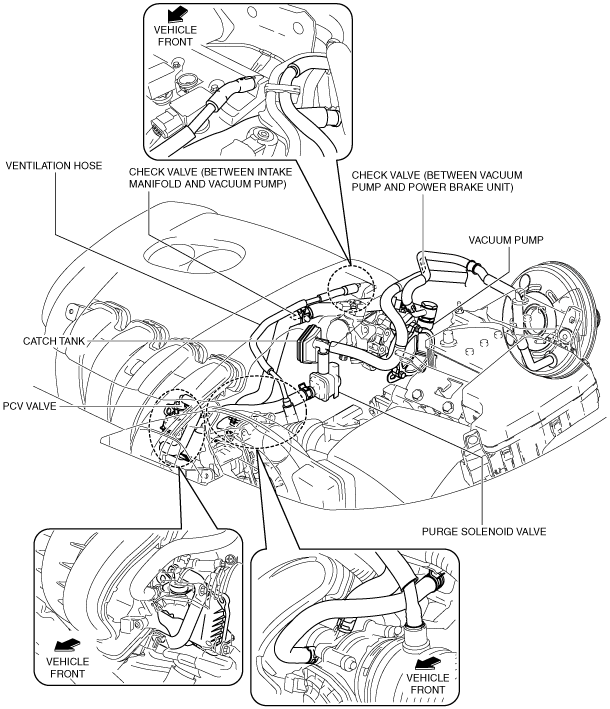

Vacuum Hose Routing Diagram

L.H.D.

am6zzn00002475

R.H.D.

am6zzn00002476

Structure

• The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See FRESH-AIR DUCT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Resonance chamber	(See RESONANCE CHAMBER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Air cleaner	(See AIR CLEANER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Throttle body	(See THROTTLE BODY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Vacuum pump	(See VACUUM PUMP [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Intake manifold	(See INTAKE MANIFOLD [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
