SUCTION CONTROL VALVE [SKYACTIV-D 2.2]
id0114z7707500
Purpose, Function
• By controlling the supply pump intake amount, the suction control valve controls the pressure pump feed amount and the pressure inside the fuel distribution pipe.
Construction

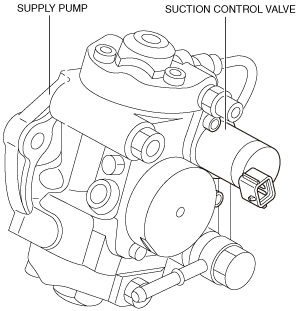

• The suction control valve is built into the supply pump.
• The suction control valve consists of the valve, valve body, armature, and teflon bush.
Operation
• The intake amount is determined by the total opening size of the valve as controlled by the duty value of the solenoid actuation current.
• The duty solenoid can adjust the open and close time ratio to control the intake amount by changing the ON time during a single cycle. For a normally open type suction control valve, making the duty ratio smaller increases the intake amount and, conversely, making the duty value larger decreases the intake amount.

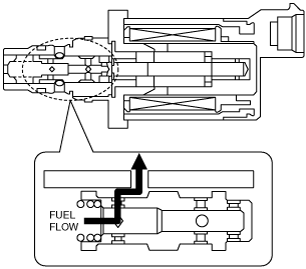

De-energized (open)
-
• The solenoid inner port is opened and fuel is sent into the control chamber.

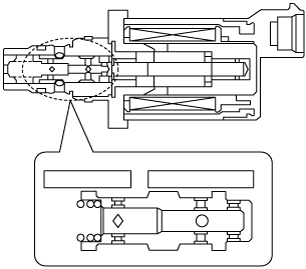

Energized (closed)
-
• The solenoid inner port is closed. Fuel siphoned by the feed pump is returned to the fuel tank through the regulator valve.
