•  When the pressure in the lower case decreases, fuel from the supply pump is introduced to the lower case.

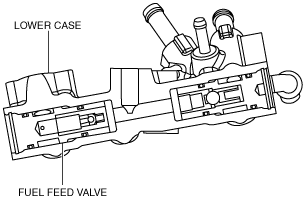

•  The fuel feed valve is integrated with the lower case.

ac5wzn00000200

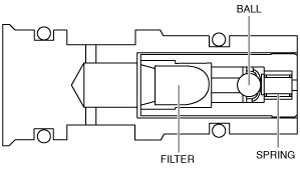

•  The fuel feed valve consists of the spring, ball and filter.

am6zzn00002898

•  When the pressure in the lower case decreases to a certain value, the fuel from the supply pump flows into the lower case (on fuel injector side) by the ball pressing the spring.

ac5wzn00000202
