EGR COOLER BYPASS VALVE [SKYACTIV-D 2.2]
id0116e1707800
Purpose, Function
• Adjusts the EGR cooler bypass valve rod.
Construction

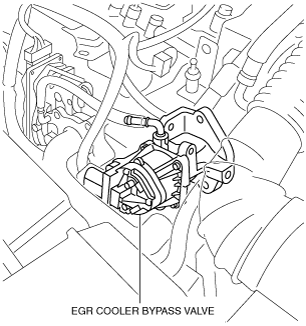

• The EGR cooler bypass valve is installed to the intake manifold.
• Consists of the valve, spring, rod, filter, plug, and motor component.
Operation
• While the engine is cool, the passage on the EGG cooler side is closed to control the generation of CO and HC.
• While the engine is warm, the passage on the EGR cooler side is open to control the generation of NOx.
